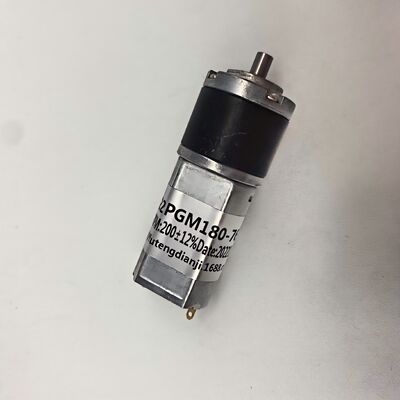

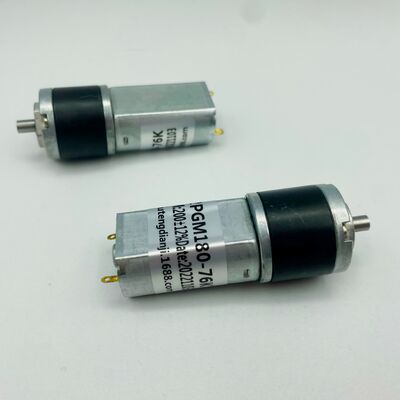

FT-22PGM180 High Torque Metal Planetary Geared Electric Motor For Lawn Mower Robot lifting Cutter Deck Structure

Name: FT-22PGM180 High Torque Metal Planetary Geared Electric Motor For Lawn Mower Robot lifting Cutter Deck Structure
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-22PGM180
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-22PGM180
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Continuous Current(A):

10-5150mA

Efficiency:

65%-95%

Rated Power:

10 W

Rated Voltage:

DC 24 V, 12/3/24/5V

Torque:

0.1-35kgf.cm, 23.6/25.2/25.6/19(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-22PGM180

Gear Box Size:

22mm

Speed:

1rpm-2000rpm

Rotating Speed:

12000/12900/10200/5000(rpm)

Current:

70/260/30/75(mA)

Output:

2.41/2.86/2.52/0.8(w)

Name:

DC Planetary Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

high torque planetary gear motor

metal geared electric motor for lawn mower

robot lifting cutter deck motor

Product Description

FT-22PGM180 High Torque Metal Planetary Geared Electric Motor For Lawn Mower Robot lifting Cutter Deck Structure

Geared motor model: FT-22PGM180-76K Gearbox diameter: Ø22mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	1	2	3	4
Reduction ratio (K)	3.5,4.8	12,17,23	43,58,79,107	150,204,276,375,509
Gear box length L(mm)	14.5	19.1	23.7	28.3
Rated torque (kg·cm)	2	3	4	5
Instant torque (kg·cm)	4	6	8	10
Gearbox efficiency (%)	90%	81%	73%	65%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-180	12	12000	70	10000	340	2.41	23.6	1700	140
FT-180	3	12900	260	11000	1540	2.86	25.2	9100	174
FT-180	24	10200	30	8600	160	2.52	25.6	830	160
FT-180	5	5000	75	4000	158	0.8	19	790	85
