6V 12v 224 Volt DC Planetary Gear Motor High Torque Gear Motor 5000rpm For Medical Equipment

Name: 6V 12v 224 Volt DC Planetary Gear Motor High Torque Gear Motor 5000rpm For Medical Equipment
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-28PGM395
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-28PGM395
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Name:

High Torque Gear Motor

Continuous Current(A):

About 430mA-2500mA

Efficiency:

65%-90%

Speed(RPM):

1rpm-600rpm

Commutation:

Brush

Construction:

Permanent Magnet

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-28PGM395

Gear Box Size:

28mm

Voltage:

1-24V

Rotating Speed:

12000/12900/10200/5000(rpm)

Rated Voltage:

6v/12v/24v

Current:

2500/850/430/540(mA)

Output:

15/10.2/10.32/12.96(w)

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

High Torque Gear Motor 5000rpm

High Torque Gear Motor 6V

24 Volt DC Planetary Gear Motor

Product Description

China Manufacturer High Torque Gear Motor 5000rpm 6V 12v 24V DC Planetary Gear Motor For Medical Equipment

FT MOTOR

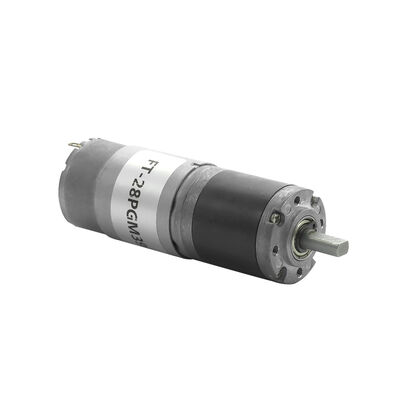

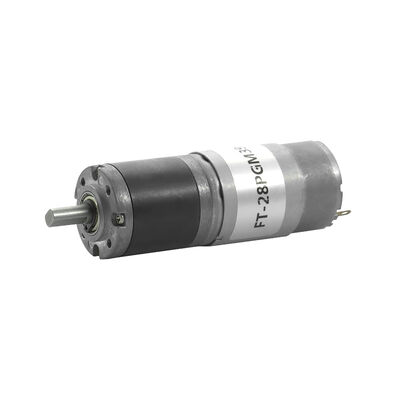

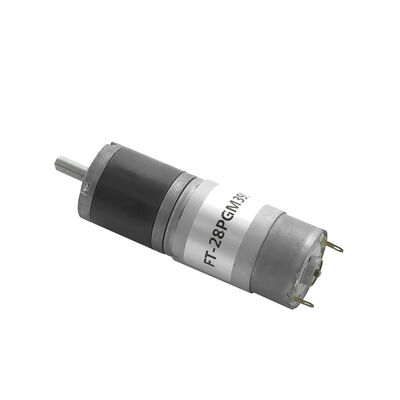

FT MOTOR Geared motor model: FT-28PGM395 Gearbox diameter: Ø28mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	1	2	3	4
Reduction ratio (K)	3.7,5.2	14,19,27	51,71,100,139	189,264,369,515,721
Gear box length L(mm)	27.5	35.5	43.5	51.5
Rated torque (kg·cm)	3	6	9	17
Instant torque (kg·cm)	6	10	20	35
Gearbox efficiency (%)	90%	81%	73%	65%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-370	6	10000	400	8400	2500	15	80	8800	430
FT-370	12	6000	180	5000	850	10.2	95	2700	560
FT-370	24	6000	80	5000	430	10.32	100	1500	560
FT-370	24	7500	100	6300	540	12.96	90	1800	600
