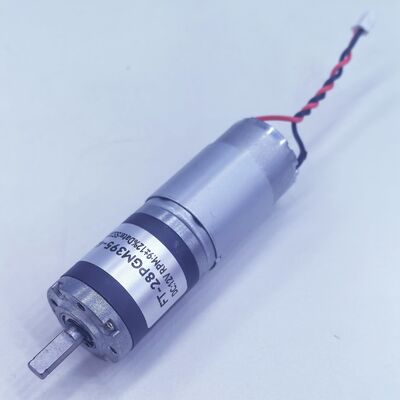

Custom 12V 24v Planetary DC Geared Motor For Solar Panel Brush Cleaning Robot

Name: Custom 12V 24v Planetary DC Geared Motor For Solar Panel Brush Cleaning Robot
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-32PGM395
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-32PGM395
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 430mA-2500mA

Efficiency:

65%-90%

Speed(RPM):

1rpm-200rpm

Commutation:

Brush

Construction:

Permanent Magnet

Torque:

1-60kgf.cm, 80/95/100/90(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-32PGM395

Voltage:

1-24V

Rotating Speed:

7500/6000/10000(rpm)

Current:

400/180/80/100(mA)

Output:

15/10.2/10.32/12.96(w)

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

12V Planetary DC Geared Motor

24v Planetary DC Geared Motor

Custom 24v Planetary Gear Motor

Product Description

Custom 12V 24v DC Planetary Gear Motor for Solar Panel Brush Cleaning Robot

FT MOTOR

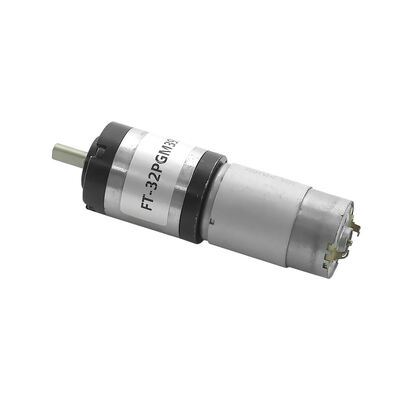

FT MOTOR Geared motor model: FT-32PGM395 Gearbox diameter: Ø32mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	1	2	3	4
Reduction ratio (K)	3.7,5.2	14,19,27	51,71,100,139	189,264,369,515,721
Gear box length L(mm)	25.5	35.5	41.5	49.5
Rated torque (kg·cm)	3	6	9	17
Instant torque (kg·cm)	6	10	20	35
Gearbox efficiency (%)	90%	81%	73%	65%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-395	6	10000	400	8400	2500	15	80	8800	430
FT-395	12	6000	180	5000	850	10.2	95	2700	560
FT-395	24	6000	80	5000	430	10.32	100	1500	560
FT-395	24	7500	100	6300	540	12.96	90	1800	600
