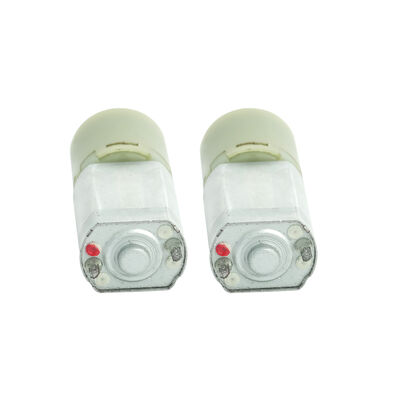

24v High Power Brush DC Planetary Gear Motor , Robots 12 Volt Planetary Gear Motor

24v High Power Brush DC Planetary Gear Motor , Robots 12 Volt Planetary Gear Motor

Brand Name: FUTENG
Model Number: FT-20PGM130
MOQ: 1000 Pieces
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 8000 0000
Detail Information
Place of Origin:
China
Certification:
CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949
Speed(RPM):
1rpm-200rpm
Commutation:
Brush
Construction:
Permanent Magnet
Torque:
0.1-20kgf.cm, 9/11.4/5.7/10.9(g.cm)
Type:
Gear Motor
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty:
3 Months ~ 1 Year
Geared Motor Model:
FT-20PGM130
Voltage:
1-24V
Speed:
1rpm-2000rpm
Rotating Speed:
8300/7200/5400/6100(rpm)
Rated Voltage:
4.8/12/5/7.5V
Current:
75/30/30/33(mA)
Output:
0.61/0.66/0.25/0.55(w)
Packaging Details:
Standard Export Carton & Customzied
Supply Ability:
8000 0000
Highlight:

Brush DC Planetary Gear Motor

,

24v High Power DC Gear Motor

,

Robots 12 Volt Planetary Gear Motor

Product Description

24v High Power Brush DC Planetary Gear Motor 12 Volt Planetary Gear Motor

FT MOTOR

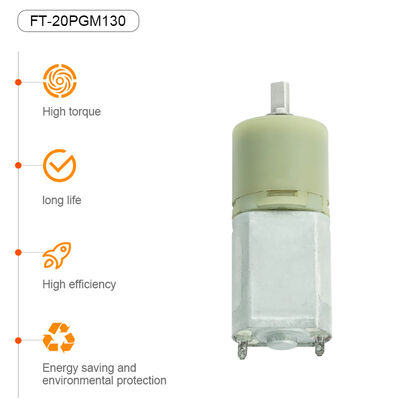

Geared motor model: FT-20PGM130 Reducer diameter: Ø20mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.
Gearbox Data:

Gear stages
3
Reduction ratio (K)
118,157
Gear box length L(mm)
23.7
Rated torque (kg·cm)
4
Instant torque (kg·cm)
8
Gearbox efficiency (%)
73%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-130
4.8
8300
75
6500
280
0.61
9
1000
43
FT-130
12
7200
30
5600
110
0.66
11.4
420
54
FT-130
5
5400
30
4200
100
0.25
5.7
380
26
FT-130
7.5
6100
33
4900
140
0.55
10.9
570
56
