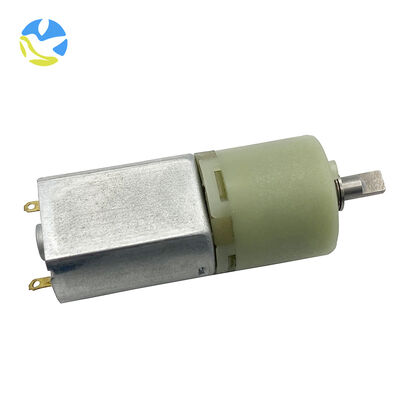

Plastic DC Planetary Gear Motor High Torque 1-400rpm Brushed DC Motor

Name: Plastic DC Planetary Gear Motor High Torque 1-400rpm Brushed DC Motor
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-20PGM130
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-20PGM130
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 150-2500mA

Efficiency:

40-73%

Rated Power:

1-48w

Rated Voltage:

3-24v, 4.8/12/5/7.5V

Speed Rpm:

2rpm-800rpm

Torque:

1-20kgf.cm, 9/11.4/5.7/10.9(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-20PGM130

Gear Box Size:

20mm

Rotating Speed:

8300/7200/5400/6100(rpm)

Current:

75/30/30/33(mA)

Output:

0.61/0.66/0.25/0.55(w)

Name:

DC Planetary Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

Plastic DC Planetary Gear Motor

DC Planetary Gear Motor High Torque

400rpm Brushed DC Motor

Product Description

Factory Custom High Torque 1-400rpm Brushed DC Motor Plastic Planetary Gear Motor

FT MOTOR

Geared motor model: FT-20PGM130 Reducer diameter: Ø20mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	3
Reduction ratio (K)	118,157
Gear box length L(mm)	23.7
Rated torque (kg·cm)	4
Instant torque (kg·cm)	8
Gearbox efficiency (%)	73%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-130	4.8	8300	75	6500	280	0.61	9	1000	43
FT-130	12	7200	30	5600	110	0.66	11.4	420	54
FT-130	5	5400	30	4200	100	0.25	5.7	380	26
FT-130	7.5	6100	33	4900	140	0.55	10.9	570	56
