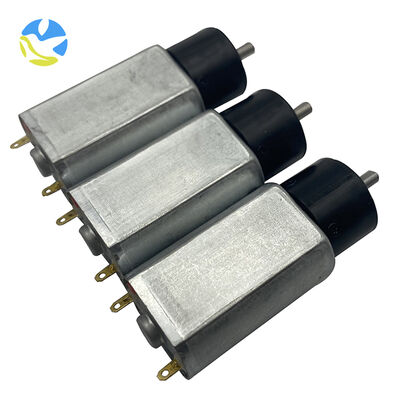

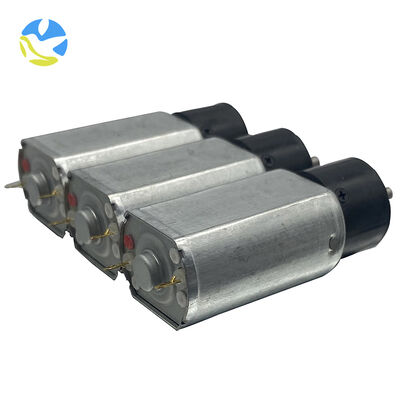

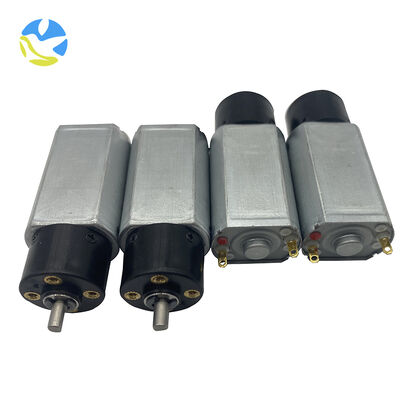

China Wholesale 17mm 3V 5V 12V 24V Brushed dc Planetary Gear Reducer Motor with Planet Gearbox Motor Low Noise

Name: China Wholesale 17mm 3V 5V 12V 24V Brushed dc Planetary Gear Reducer Motor with Planet Gearbox Motor Low Noise
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-17PGM180
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-17PGM180
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 1150mA

Torque:

13 G.cm, 2.1/2.8/3/4

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-17PGM180

Gear Box Size:

17mm

Voltage:

1-24V

Speed:

1rpm-2000rpm

Rotating Speed:

12000/12900/10200/5000(rpm)

Rated Voltage:

12/3/24/5V

Current:

20/35/45/96(mA)

Output:

0.2/0.25/0.35/0.52(w)

Name:

DC Planetary Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

17mm dc planetary gear motor

17mm planetary dc gear motor

3v dc planetary gear motor

Product Description

FT MOTOR

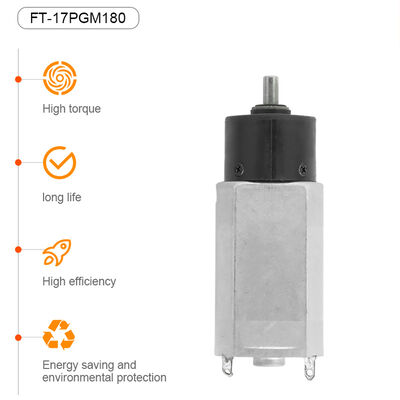

Geared motor model: FT-17PGM180

Reducer diameter: Ø17mm

Voltage: 1-24V

Speed: 1rpm-2000rpm

DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	1
Reduction ratio (K)	6
Gear box length L(mm)	12
Rated torque (kg·cm)	0.2
Instant torque (kg·cm)	0.6
Gearbox efficiency (%)	90%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-130	12	12000	70	10000	340	2.41	23.6	1700	140
FT-130	3	12900	260	11000	1540	2.86	25.2	9100	174
FT-130	24	10200	30	8600	160	2.52	25.6	830	160
FT-130	5	5000	75	4000	158	0.8	19	790	85
