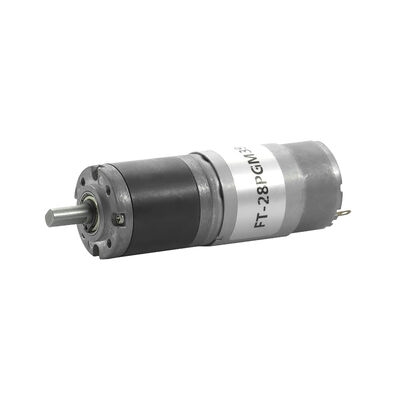

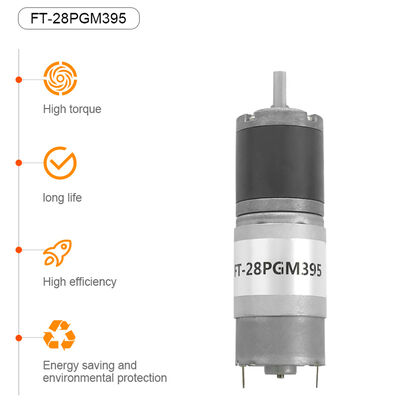

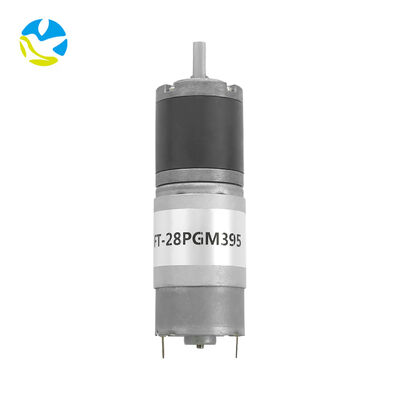

China Custom Mini Motor 24v Dc Electric Motor High Torque 12v DC Planetary Gear Motor 1-500rpm for Medical Equipment

Name: China Custom Mini Motor 24v Dc Electric Motor High Torque 12v DC Planetary Gear Motor 1-500rpm for Medical Equipment
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-28PGM395
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-28PGM395
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 430mA-2500mA

Efficiency:

65%-90%

Torque:

1-50kgf.cm, 80/95/100/90(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-28PGM395

Gear Box Size:

28mm

Voltage:

1-24V

Speed:

5000rpm-8400rpm

Rotating Speed:

12000/12900/10200/5000(rpm)

Rated Voltage:

6v/12v/24v

Current:

2500/850/430/540(mA)

Output:

15/10.2/10.32/12.96(w)

Name:

DC Planetary Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

high torque 12v dc planetary gear motor

custom 12v dc planetary gear motor

custom dc planetary gear motor 12v

Product Description

FT MOTOR

FT MOTOR Geared motor model: FT-28PGM395 Gearbox diameter: Ø28mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	1	2	3	4
Reduction ratio (K)	3.7,5.2	14,19,27	51,71,100,139	189,264,369,515,721
Gear box length L(mm)	27.5	35.5	43.5	51.5
Rated torque (kg·cm)	3	6	9	17
Instant torque (kg·cm)	6	10	20	35
Gearbox efficiency (%)	90%	81%	73%	65%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-370	6	10000	400	8400	2500	15	80	8800	430
FT-370	12	6000	180	5000	850	10.2	95	2700	560
FT-370	24	6000	80	5000	430	10.32	100	1500	560
FT-370	24	7500	100	6300	540	12.96	90	1800	600
