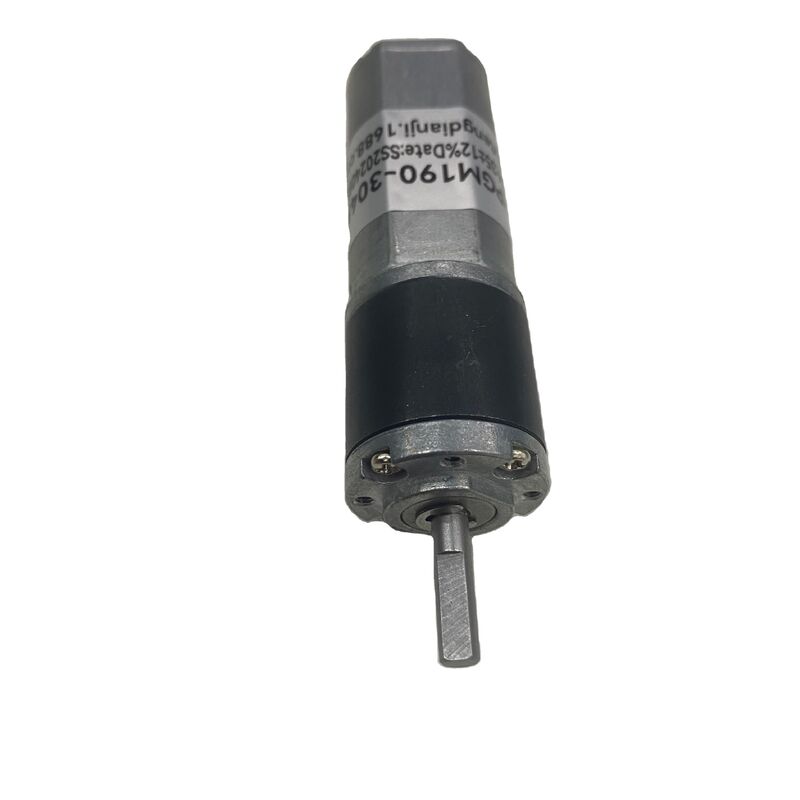

22mm Diameter Dc Planetary Gear Brushed Motor Electric Curtain FT-22PGM190

Name: 22mm Diameter Dc Planetary Gear Brushed Motor Electric Curtain FT-22PGM190
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-22PGM190
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-22PGM190
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

150mA-1150ma

Efficiency:

65%-95%

Torque:

1-35kgf.cm, 23.6/25.2/25.6/19(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-22PGM190

Gear Box Size:

22mm

Voltage:

1-24V

Speed:

1rpm-200rpm

Rotating Speed:

12000/12900/10200/5000(rpm)

Rated Voltage:

12/3/24/5V

Current:

70/260/30/75(mA)

Output:

2.41/2.86/2.52/0.8(w)

Name:

DC Planetary Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

22mm dc planetary gear motor

22mm planetary dc gear motor

brushed dc planetary gear motor

Product Description

22mm Diameter Dc Planetary Gear Brushed Motor Electric Curtain FT-22PGM190

Geared motor model: FT-22PGM180-76K Gearbox diameter: Ø22mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	1	2	3	4
Reduction ratio (K)	3.5,4.8	12,17,23	43,58,79,107	150,204,276,375,509
Gear box length L(mm)	14.5	19.1	23.7	28.3
Rated torque (kg·cm)	2	3	4	5
Instant torque (kg·cm)	4	6	8	10
Gearbox efficiency (%)	90%	81%	73%	65%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-180	12	12000	70	10000	340	2.41	23.6	1700	140
FT-180	3	12900	260	11000	1540	2.86	25.2	9100	174
FT-180	24	10200	30	8600	160	2.52	25.6	830	160
FT-180	5	5000	75	4000	158	0.8	19	790	85
