FT-36PGM555 High Torque Low Rpm 24v 12v Dc Electric Motor Planetary Gear Motor

Name: FT-36PGM555 High Torque Low Rpm 24v 12v Dc Electric Motor Planetary Gear Motor
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-36PGM555
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-36PGM555
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 110mA-550mA

Efficiency:

65%-73%

Torque:

1-180kgf.cm, 20/28/21/27(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-36PGM555

Gear Box Size:

36mm

Voltage:

1-24V

Speed:

1rpm-600rpm

Rotating Speed:

5000/12000/6000/9000(rpm)

Rated Voltage:

6v/12v/24v

Current:

45/90/21/43(mA)

Output:

0.88/2.96/1.12/2.2(w)

Name:

DC Planetary Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

24v dc planetary gear motor

24v planetary dc gear motor

12v dc planetary gear motor

Product Description

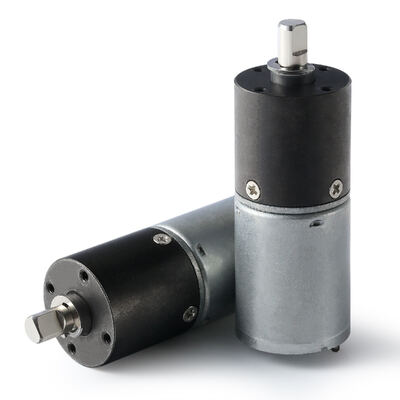

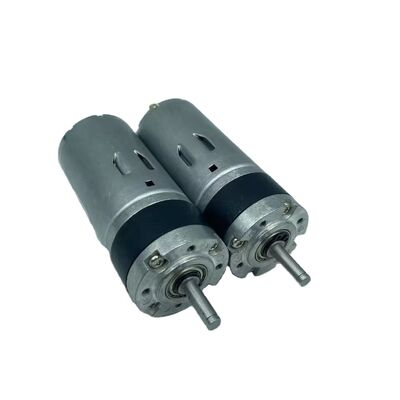

FT-36PGM555 high torque low rpm 24v 12v dc electric motor planetary gear motor

Brand	FUTENG
Motor type	Planetary motor
Model number	FT-36PGM555
Voltage	12 / 24V
Electric current	12V 1.3A /24V 0.8A
Power	12V 16.5W / 24V 24W
Torque	0.2NM- 1.4 NM
Rotating speed	11-2160rpm
Weight	479g
Shaft	D625mm, D825mm
Whether forward or reverse	Yes
Whether to adjust the speed	Yes
