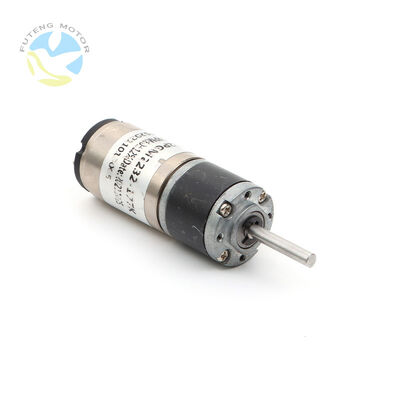

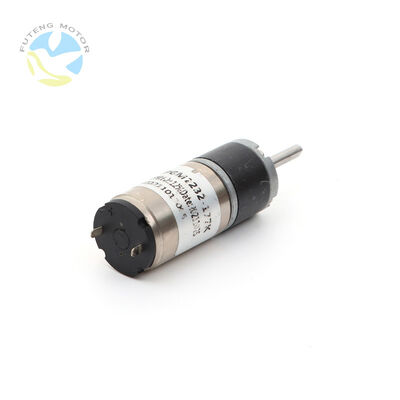

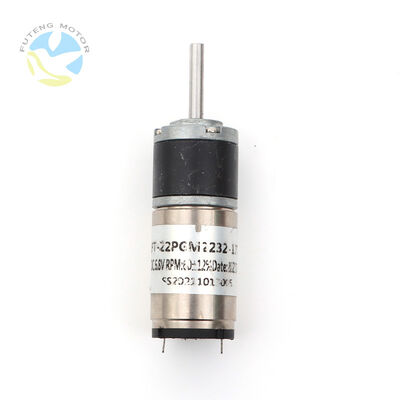

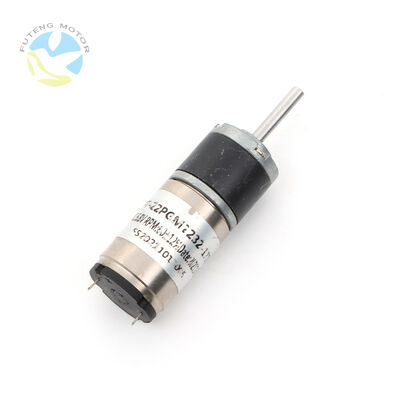

Futeng Motor 24v High Torque DC Gear Motors for Smart Door Lock Gearbox High Speed Low Noise Mini Motor DC 24v

Name: Futeng Motor 24v High Torque DC Gear Motors for Smart Door Lock Gearbox High Speed Low Noise Mini Motor DC 24v
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-22PGM2232-177K
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-22PGM2232-177K
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 1150mA

Torque:

1-25kgf.cm, 2.1/2.8/3/4

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-22PGM2232-177K

Gear Box Size:

22mm

Voltage:

1-24V

Speed:

5rpm-600rpm

Rotating Speed:

12000/12900/10200/5000(rpm)

Rated Voltage:

12/3/24/5V

Current:

20/35/45/96(mA)

Output:

0.2/0.25/0.35/0.52(w)

Name:

DC Planetary Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

24v dc planetary gear motor

24v planetary dc gear motor

high torque dc planetary gear motor

Product Description

FT MOTOR

Geared motor model: FT-22PGM2232-177K

Reducer diameter: Ø22mm

Voltage: 1-24V

Speed: 1rpm-2000rpm

DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	1
Reduction ratio (K)	6
Gear box length L(mm)	12
Rated torque (kg·cm)	0.2
Instant torque (kg·cm)	0.6
Gearbox efficiency (%)	90%
