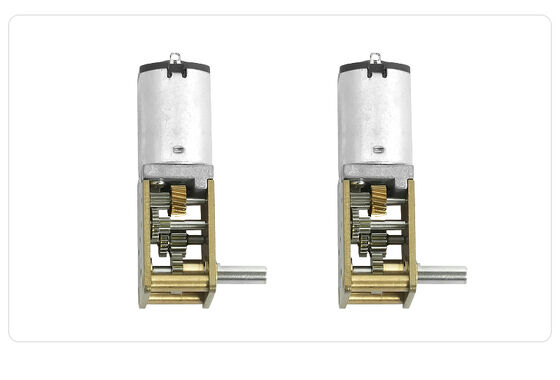

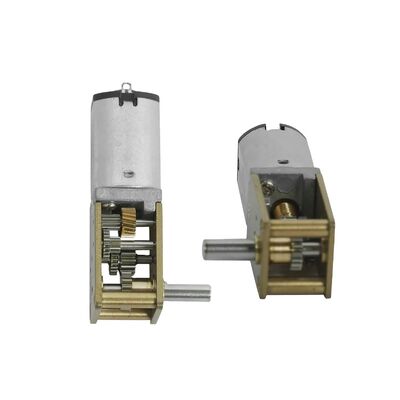

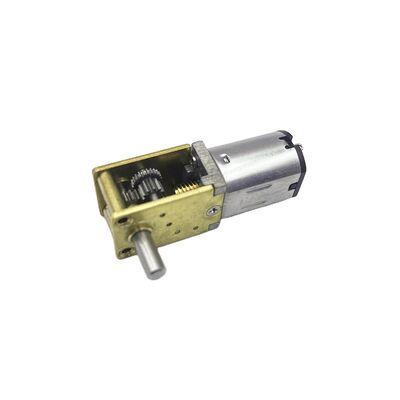

Self Locking Small DC Geared Motors N20 3v 6v 12v 24v Mini Worm Gear Motor Low Noise

Name: Self Locking Small DC Geared Motors N20 3v 6v 12v 24v Mini Worm Gear Motor Low Noise
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-12SGMN20
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-12SGMN20
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Name:

Small DC Geared Motors

Continuous Current(A):

About 1150mA

Efficiency:

48%-81%

Speed(RPM):

5rpm-450rpm

Commutation:

Brush

Construction:

Permanent Magnet

Protect Feature:

Explosion-Proof

Torque:

13 --5000g.cm

Type:

RH MOTOR

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-12SGMN20

Gearbox Parameters:

RH MOTOR

Reduction Ratio:

59,118,236(K)

Gearbox Diameter:

1 2mm Worm Gear

Gear Box Length L:

18(mm)

Voltage:

3-24V

Gearbox Efficiency:

30%

Rotating Speed:

5rpm- 450rpm

Gear Stages:

Dimensions:

10*12*18

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

Self Locking Small DC Geared Motors

Small DC Geared Motors N20

24v Mini Worm Gear Motor

Product Description

Self-Locking Small Geared Motors N20 High Torque 3v 6v 12v 24v Micro Motor Low Noise Dc Worm Gear Motor

FT MOTOR

Geared motor model: FT-13SGMN20 Gear box size: 12mm Voltage: 1-24V Speed: 3rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc. .

Gearbox Data			RH MOTOR
Gear stages	4	Geared motor model	RH-12SGMN20
Reduction ratio (K)	59,118,236	Gearbox diameter	12mm worm gear
Gear box length L(mm)	18	Voltage	3-24V
Gearbox efficiency (%)	30%	Rotating speed	5rpm- 450rpm

Reducer performance parameters:
Serial number	Reduction ratio	Dimensions	Rated torque	Momentary allowable torque	noise
1	59	101218	100g.cm	300g.cm	<50db
2	118	101218	230g.cm	700g.cm	<50db
3	236	101218	450g.cm	1350g.cm	<50db
