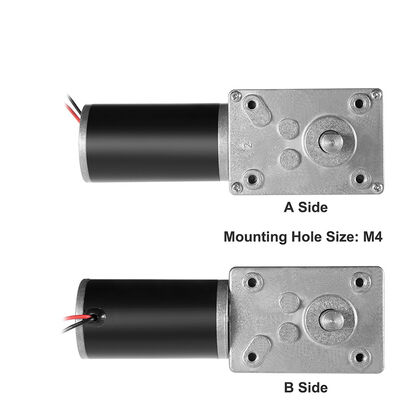

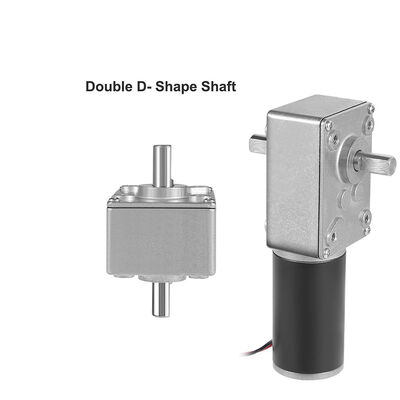

Double Shaft DC Worm Gear Motor 12V 24V For Intelligent Equipments

Name: Double Shaft DC Worm Gear Motor 12V 24V For Intelligent Equipments
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-58SGM31ZY
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-58SGM31ZY
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 110mA-550mA

Efficiency:

53-85%

Commutation:

Brush

Construction:

Permanent Magnet

Torque:

1-180kgf.cm, 130/300/90/130(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-58SGM31ZY

Gear Box Size:

58*40.1mm

Voltage:

1-24V

Speed:

1rpm-600rpm

Rotating Speed:

5500/9000/3500/5500(rpm)

Current:

180/300/100/160(mA)

Output:

5.5/21/2.5/5.6(w)

Name:

DC Worm Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

Double Shaft Dc Worm Gear Motor

Double Shaft DC Gear Motor 12V

Double Shaft Worm Gear Motor 24V

Product Description

Wholesale Customized Double Shaft Dc Worm Gear Motor For Intelligent Equipments

FT MOTOR

Geared motor model: FT-58SGM31ZY Gearbox diameter: 58×40.1mm Voltage: 1-24V Speed: 1rpm-600rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stages	3	4
Reduction ratio (K)	54,75,106	202,250,313,402,548,663,804,1327
Gear box length L(mm)	31	19
Rated torque (kg·cm)	7	0.5
Instant torque (kg·cm)	12	1.5
Gearbox efficiency (%)	53%	/

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-31ZY	12	5500	180	4100	750	5.5	130	3500	520
FT-31ZY	12	9000	300	6700	1500	21	300	6500	1200
FT-31ZY	24	3500	100	2600	220	2.5	90	850	360
FT-31ZY	24	5500	160	4100	320	5.6	130	1700	520
