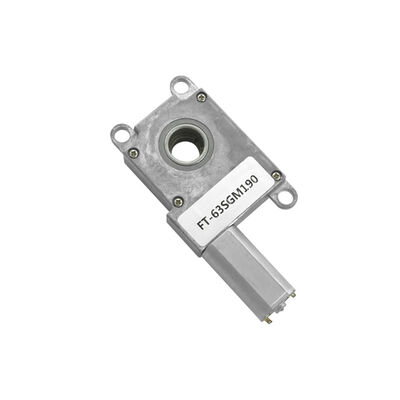

FT-63SGM190 60rpm 8V DC Worm Gear Motor High Torque Explosion Proof

Name: FT-63SGM190 60rpm 8V DC Worm Gear Motor High Torque Explosion Proof
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-63SGM190
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-63SGM190
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 110mA-5500mA

Efficiency:

45-95%

Speed(RPM):

60rpm

Commutation:

Brush

Construction:

Permanent Magnet

Torque:

1-30kgf.cm, 40/45/50/45(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-63SGM190

Gear Box Size:

68*38mm

Voltage:

1-24V

Speed:

60rpm

Rotating Speed:

60-11000(rpm)

Current:

400/180/80/100(mA)

Output:

15/10.2/10.32/12.96(w)

Name:

DC Worm Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

60rpm DC Worm Gear Motor

8V DC Worm Gear Motor

FT-63SGM190 DC Gear Motor High Torque

Product Description

FT MOTOR

Geared motor model: FT-63SGM190 Gearbox diameter: Ø63*38mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stages	3
Reduction ratio (K)	118
Gear box length L(mm)	63
Rated torque (kg·cm)	4
Instant torque (kg·cm)	22
Gearbox efficiency (%)	73%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-190	6	10000	400	8400	2500	15	40	8800	210
FT-190	12	6000	180	5000	850	10.2	45	2700	280
FT-190	24	6000	80	5000	430	10.32	50	1500	280
FT-190	24	7500	100	6300	540	12.96	45	1800	300
