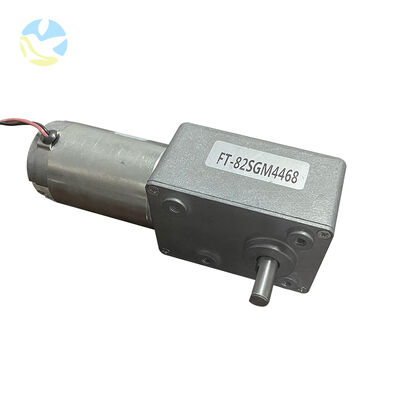

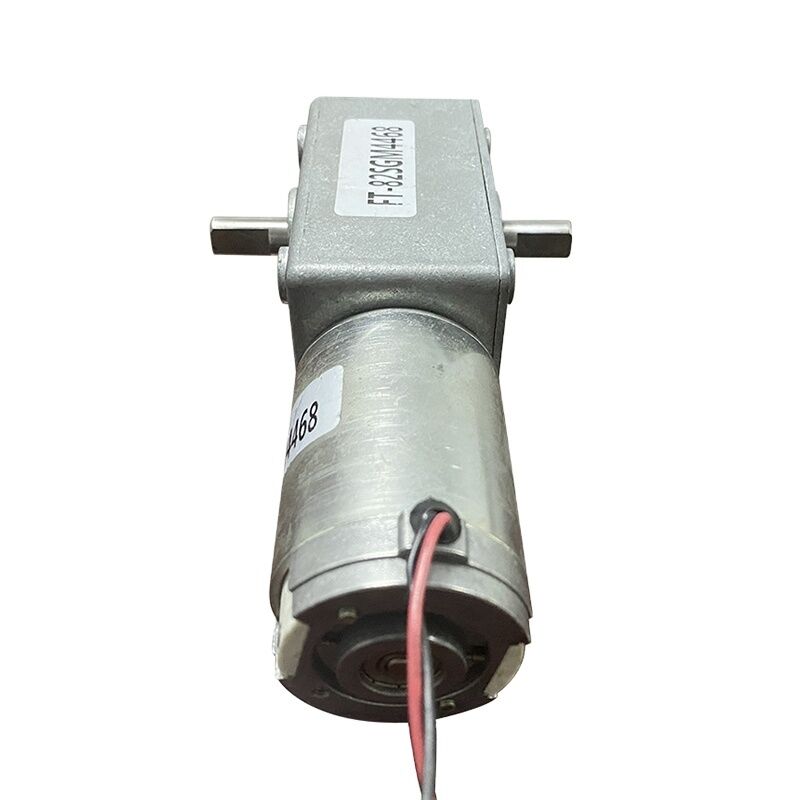

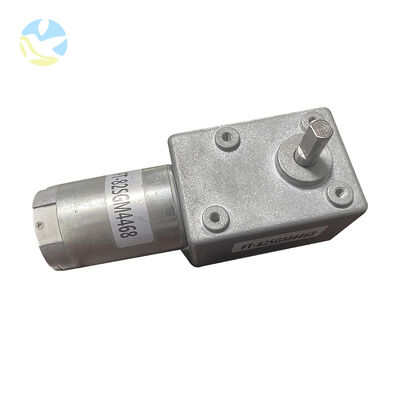

Futeng Factory Customized 82mm 12v24v Dc Worm Gear Motor

Name: Futeng Factory Customized 82mm 12v24v Dc Worm Gear Motor
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-82SGM4468
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-82SGM4468
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 250mA-300mA

Efficiency:

30-73%

Speed(RPM):

2rpm-470rpm

Commutation:

Brush

Construction:

Permanent Magnet

Protect Feature:

Explosion-Proof

Torque:

10-200kgf.cm, 5-50kgf.cm

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-82SGM4468

Voltage:

6v/12v/24v

Speed:

2rpm-200rpm

Rated Voltage:

6v/12v/24v

Round Gearbox Size:

82.5*58*54mm

Power:

20/28w)

Direction:

CW, CCW

Typical Applications:

Smart Instrument, Digital Product, Automatic Door-lock

Typical Applications-1:

Medical Equipment, Security Monitoring, Smart Home Applicances, Robots

Name:

DC Worm Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

24v dc worm gear motor

24v worm gear dc motor

brush dc worm gear motor

Product Description

Product Paramenters

3 head seamless welding machine tsiny 12v dc worm gear motor

1.Main voltage : 6VDC,12VDC, 24VDC 2.Typical applications: Smart Instrument, Digital product, Automatic door-lock, Medical equipment, Security monitoring, Smart home applicances, Robots… 3. Round Gearbox size: 82.5*58*54mm 4. Torque: 5-50kgf.cm 5. Direction: CW, CCW 6. Voltage, speed, and shaft can be customized based
