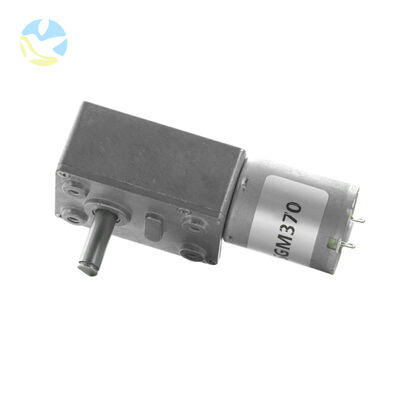

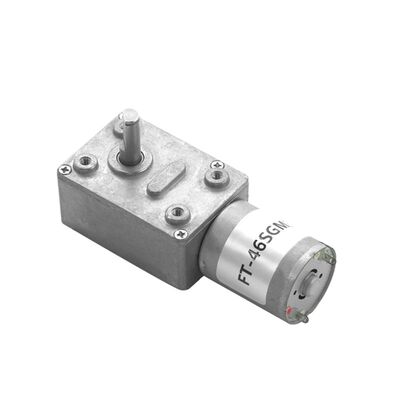

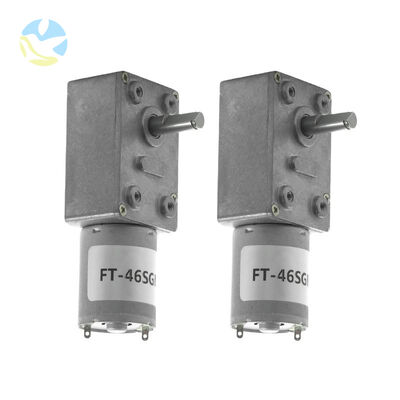

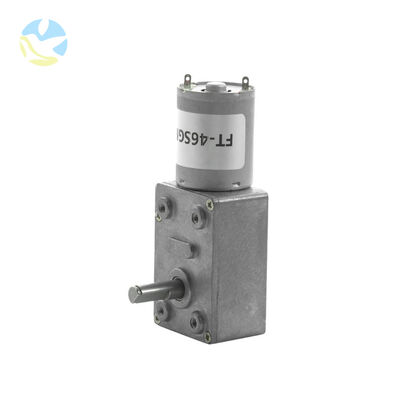

Futeng Factory 12V 24V High Quality Dc Worm Gear Motor for Industrial Electric Product

Name: Futeng Factory 12V 24V High Quality Dc Worm Gear Motor for Industrial Electric Product
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-46SGM370
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-46SGM370
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 110mA-5500mA

Efficiency:

65%-85%

Commutation:

Brush

Construction:

Permanent Magnet

Rated Power:

1-48w

Rated Voltage:

3-24v, 6v/12v/24v

Speed Rpm:

1rpm-600rpm

Torque:

1-38kgf.cm, 20/28/21/27(g.cm)

Type:

Gear Motor

Usage:

Home Appliance, Cosmetic Instrument, Smart Home

Geared Motor Model:

FT-46SGM370

Gear Box Size:

46*32mm

Current:

45/90/21/43(mA)

Name:

DC Worm Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

24v dc worm gear motor

24v worm gear dc motor

brush dc worm gear motor

Product Description

FT MOTOR

DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stages	3	4
Reduction ratio (K)	69,108,138,200	323,412,540,1012,1320
Gear box length L(mm)	25.5	25.5
Rated torque (kg·cm)	2	4
Instant torque (kg·cm)	5	7
Gearbox efficiency (%)	73%	65%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-370	6	5000	45	4200	240	0.88	20	1100	112
FT-370	12	12000	90	10300	520	2.96	28	2500	177
FT-370	24	6000	21	5100	110	1.12	21	440	126
FT-370	24	9000	43	7800	210	2.2	27	950	182
