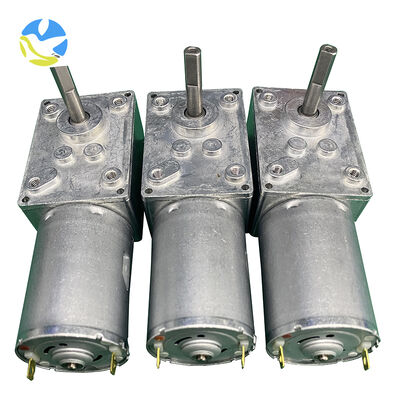

High Torque 6v 12v 24v Mini Low Rpm Brush Dc Electric Worm Gear Motor for Robot Household Appliances Price Dc Worm Geared Motor

Name: High Torque 6v 12v 24v Mini Low Rpm Brush Dc Electric Worm Gear Motor for Robot Household Appliances Price Dc Worm Geared Motor
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-58SGM545
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-58SGM545
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 430mA-2500mA

Efficiency:

48%-85%

Torque:

1-100kgf.cm, 220/280/280/260(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-58SGM545

Gear Box Size:

58*40.1mm

Voltage:

1-24V

Speed:

2rpm-600rpm

Rotating Speed:

4000/6000/6000/9000(rpm)

Rated Voltage:

6v/12v/24v

Current:

500/350/170/200(mA)

Output:

9.7/44.4/10.8/18.5(w)

Name:

DC Worm Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

24v dc worm geared motor

24v electric worm gear motor

brush dc worm geared motor

Product Description

FT MOTOR

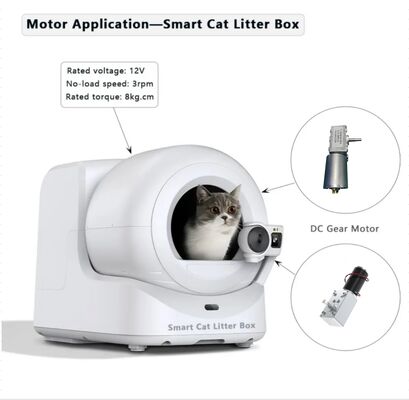

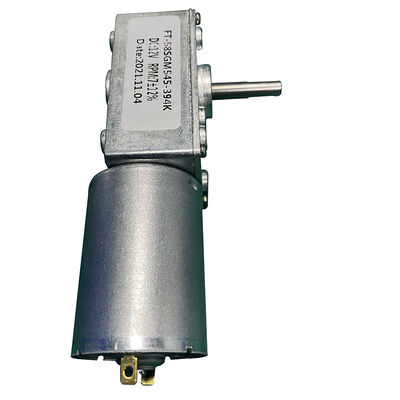

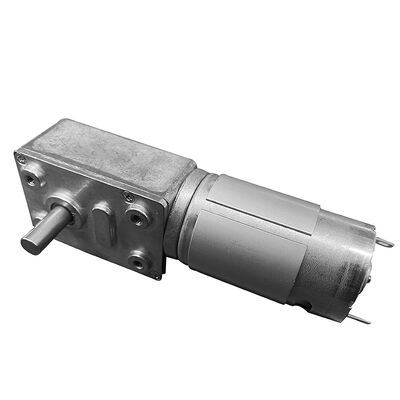

FT MOTOR Geared motor model: FT-58SGM545 Gearbox diameter: Ø58*40.1mm Voltage: 1-24V Speed: 1rpm-600rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	3	4
Reduction ratio (K)	54,75,106	202,250,313,402,548,663,804,1327
Gear box length L(mm)	31	31
Rated torque (kg·cm)	7	10
Instant torque (kg·cm)	12	17
Gearbox efficiency (%)	53%	48%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-545	6	4000	500	3300	2500	9.7	220	12000	1100
FT-545	12	6000	350	4500	2300	44.4	280	7000	1200
FT-545	24	6000	170	5150	1000	10.8	280	5200	2100
FT-545	24	9000	200	7900	1900	18.5	260	15000	1800
