Factory Custom 3v6v12v24v Reducer Mini Worm Gear Motor FT-12SGMN20

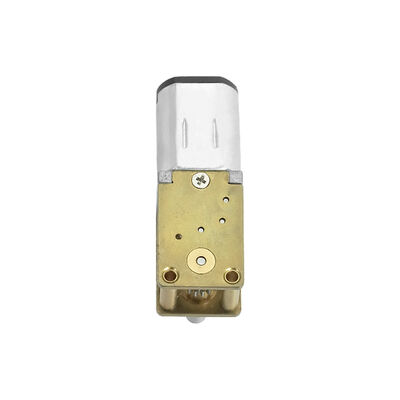

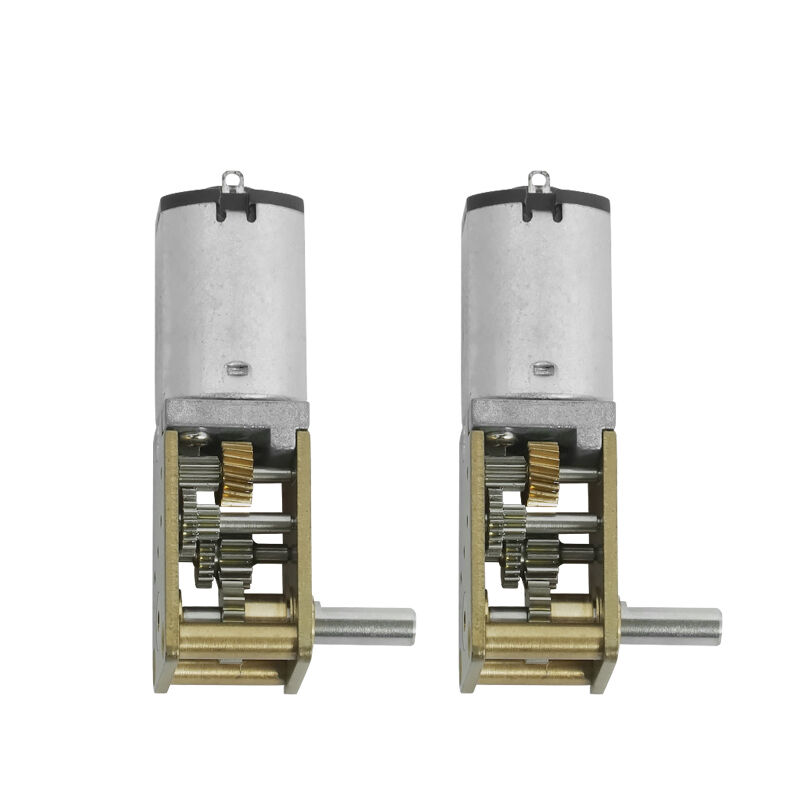

Name: Factory Custom 3v6v12v24v Reducer Mini Worm Gear Motor FT-12SGMN20
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-13SGMN20
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-13SGMN20
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 1150mA

Efficiency:

48%-81%

Speed(RPM):

5rpm-450rpm

Commutation:

Brush

Construction:

Permanent Magnet

Rated Power:

1-48W

Rated Voltage:

3-14V

Speed Rpm:

5rpm-450rpm

Torque:

0.1-310kgf.cm

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-13SGMN20

Reduction Ratio:

59,118,236(K)

Gearbox Diameter:

1 2mm Worm Gear

Gear Box Length L:

18(mm)

Dimensions:

10*12*18

Name:

DC Worm Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

custom dc worm gear motor

custom worm gear dc motor

24v dc worm gear motor

Product Description

FT MOTOR

Geared motor model: FT-13SGMN20 Gear box size: 12mm Voltage: 1-24V Speed: 3rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc. .

Gearbox Data			RH MOTOR
Gear stages	4	Geared motor model	RH-12SGMN20
Reduction ratio (K)	59,118,236	Gearbox diameter	12mm worm gear
Gear box length L(mm)	18	Voltage	3-24V
Gearbox efficiency (%)	30%	Rotating speed	5rpm- 450rpm

Reducer performance parameters:
Serial number	Reduction ratio	Dimensions	Rated torque	Momentary allowable torque	noise
1	59	101218	100g.cm	300g.cm	<50db
2	118	101218	230g.cm	700g.cm	<50db
3	236	101218	450g.cm	1350g.cm	<50db
