Wholesale Custom FT-58SGM555 High Torque Dc 12v 24v 2-400rpm Worm Gear Motor for Electric Products

Name: Wholesale Custom FT-58SGM555 High Torque Dc 12v 24v 2-400rpm Worm Gear Motor for Electric Products
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-58SGM555
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-58SGM555
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 250mA-300mA

Speed(RPM):

1rpm-470rpm

Commutation:

Brush

Construction:

Permanent Magnet

Rated Power:

1-48w

Rated Voltage:

3-24v, 6v/12v/24v

Torque:

1-57kgf.cm, 17/31/50/70(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-58SGM555

Rotating Speed:

470/260/160/80/27/16rpm

No Load Current:

300/250(mA)

Ratio:

17/31/50/100/290/500

Name:

DC Worm Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

custom dc worm gear motor

custom worm gear dc motor

24v dc worm gear motor

Product Description

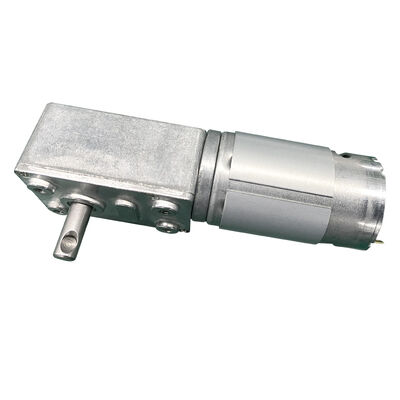

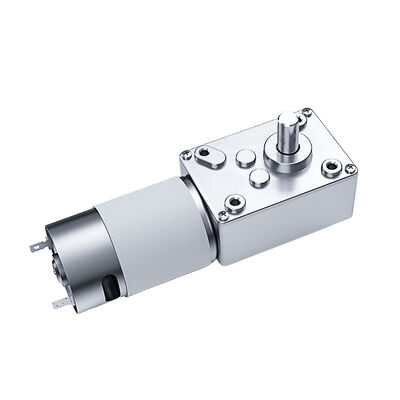

Wholesale Custom FT-58SGM555 High Torque Dc 12v 24v 2-400rpm Worm Gear Motor for Electric Products

Common applications:

1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots, vacuum cleaners, smart home systems. 2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges. 3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver. 4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines. 5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet). 6. Health field: massager. 7. Security field: surveillance system, camera, safe. 8. Industrial applications: robotic arms, printing equipment, automation equipment. 9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY, etc.

Note: Shaft, speed, voltage can be customized.

Model	Voltage			Ratio	No Load			Rated Load
		Range	Rated	Ratio		Speed	Current	Speed	Current	Torque	Power
		V			1:00	rpm	mA	rpm	A	Kgf·cm	W
555-1280	6-12V	DC12V	17	470	300	400	1.6	5	20
						31	260	300	220	1.6	9	20
						50	160	300	135	1.6	15	20
						100	80	300	68	1.6	30	20
						290	27	300	23	1.6	70	20
						500	16	300	13.5	1.6	70	20
555-2480	12-24V	DC24V	17	470	250	400	2	6.8	28
						31	260	250	220	2	12	28
						50	160	250	135	2	19	28
						100	80	250	68	2	60	28
						290	27	250	23	2	70	28
						500	16	250	13.5	2	70	28

Notice:

Hello, I am very happy to see our products. We are professional motor OEM/ODM manufacturers, and have nearly 11 years of production and R&D experience. We have our own factory and technical engineers. We are located in Shenzhen, China, If you are interested in our products, there are any motor customization needs, welcome to contact us, our professional services to answer your questions.
