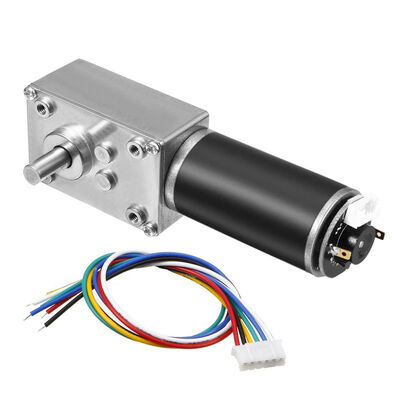

Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function

Name: Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-58SGM31ZY
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-58SGM31ZY
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Document:

FT-58SGM31ZY-1168K(FTLJC063...6).pdf

Motor Type:

FT-58SGM31ZY

Gear Box Size:

58*40mm

Rated Voltage:

12v 24v Other Can Be Customized

Rated Speed RPM:

1-1500 RPM

Rated Torque:

2-50kgf.cm Other Can Be Customized

Stall Torque:

10-300kgf.cm Other Can Be Customized

Power:

1w 3w 5w 6w 10w 15w Other Can Be Customized

Output Shaft:

D -Cut ,Round Other Can Be Customized

Gear Ratio:

1:12.5 / 1:26/1:54/1:75/1:106/1:150/1:161/1:205/1:331/1:394/1:202/1:250/1:313/1:402/1:483/1:548/1:569/1:663/1:777/1:804/1:1168/1:1327

Gearbox Efficiency %:

45% 53% 55%

Samples:

1-100 Pieces

MOQ:

1000 Pieces

Name:

DC Worm Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

12v 24v Worm Gear Motor

Full Metal Worm Gear Motor

High Torque Worm Gear Motor

Product Description

FT-58SGM31ZY Full Metal High Torque Silent 12v 24v Mini Low Speed Rpm Worm Gear Motor with Self-Locking Function

Product Features:

Very sturdy construction inside and outside. The outside shell is well built with excellent access to mounting M4 screws.
Double ball bearing and carbon pad brushes ensure super quiet, smooth operation and extended lifespan, even under maximum load.
Gear DC motor with micro-turbine worm allows changing motor rotation (CW/CCW) by modifying wiring connections.
Turbo worm geared motor features self-locking function - output axis remains fixed when motor is not powered.
Reducer output shaft is arranged vertically with the motor shaft, featuring a relatively short output shaft ideal for space-constrained installations.

Product Advantages

Definition: Gear reduction motor based on ordinary DC motor with matching gear reducer.

Features: Small size, high strength, low noise, long lifespan.

Function: Provides lower speed, larger torque, and self-locking capability.

Advantage: Saves space, increases torque, and reduces speed RPM.
