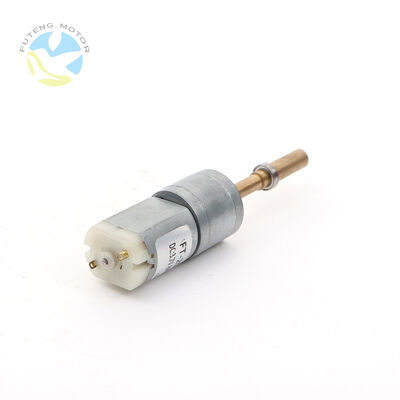

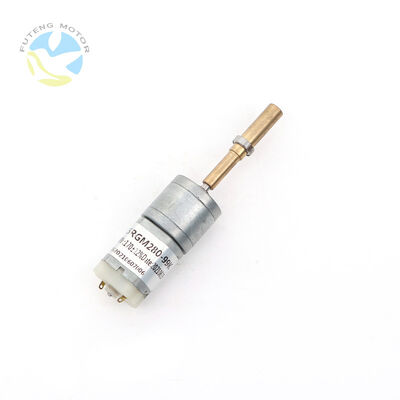

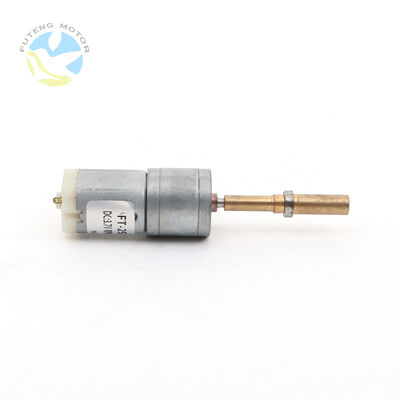

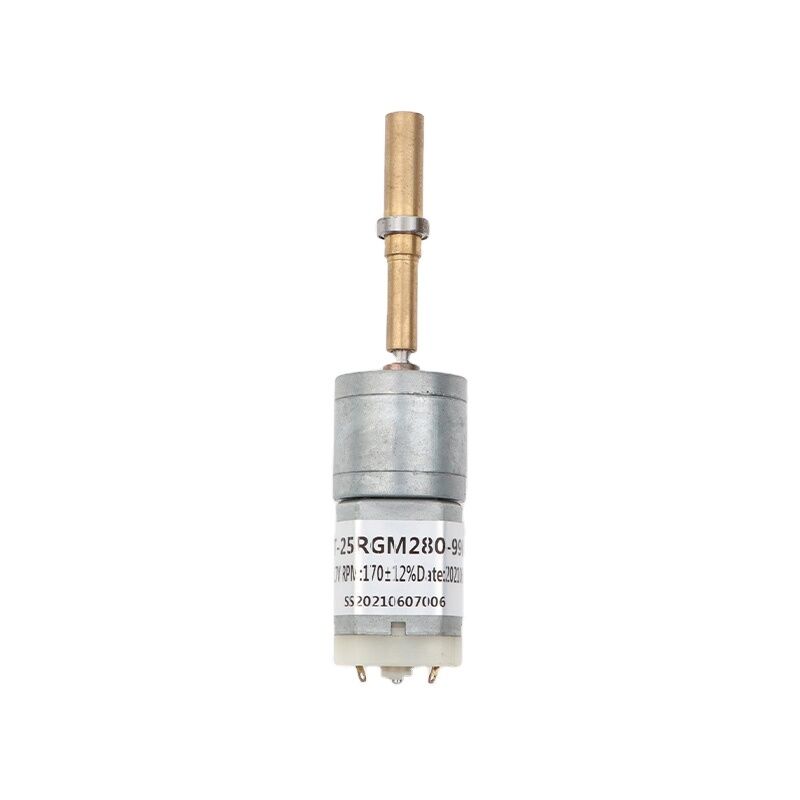

Futeng Custom Micro DC Gear Motor with Hexagon Shaft

Name: Futeng Custom Micro DC Gear Motor with Hexagon Shaft
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-25RGM280-99K
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-25RGM280-99K
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 430mA-2500mA

Efficiency:

48%-53%

Commutation:

Brush

Construction:

Permanent Magnet

Torque:

1-38kgf.cm, 3.3/5/10/10(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

Other

Geared Motor Model:

FT-25RGM280-99K

Gear Box Size:

25mm

Voltage:

1-24V

Speed:

1rpm-500rpm

Rotating Speed:

2800/9000/8000/6000(rpm)

Rated Voltage:

2.5/12/24/6V

Current:

17/30/20/33(mA)

Output:

0.073/0.44/0.7/0.5(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

6v dc spur gear motor

24v dc spur gear motor

6v micro dc gear motor

Product Description

FT MOTOR

Geared motor model: FT-25RGM280-99K

Gearbox diameter: Ø25mm Voltage: 1-24V Speed: 1rpm-500rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

FAQ

1.Q: Are you trading company or manufacturer? A: We're factory. We specialize in micro dc motor and dc gear motor for more than 10 years.

2.Q:I can't find a suitable motor on your website, can you customize the motor for me? A: Yes, we can customize a suitable motor according to our customer's requirements.

3.Q: Do you have certificates for the motors? A: Yes. we have CE. FCC, ISO, etc. lf you have the other certificates requirement, we can apply it for you.

4.Q: How is your Quality Control?A: We have professional checking staff on every production line process. After finishing the whole motor.we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D image Tester, SaltSpray Chamber, LifeTester, Temperature Test Machine, and Noise tester etc.
