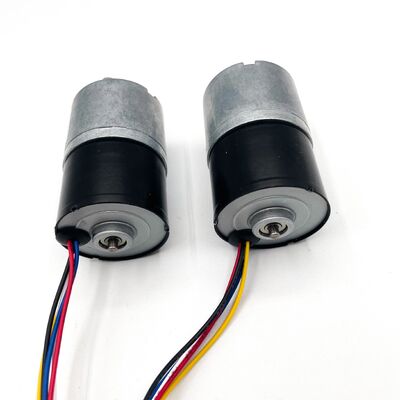

High Torque Slow Speed Gear Motor Long Life Span Brushless Electric DC Gear Motor

Name: High Torque Slow Speed Gear Motor Long Life Span Brushless Electric DC Gear Motor
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-37RGM3626012-414K
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-37RGM3626012-414K
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Name:

Slow Speed Gear Motor

Continuous Current(A):

About 110mA-550mA

Efficiency:

43%-75%

Commutation:

Brush

Rated Power:

1-48W

Torque:

18 G.cm, 0.05kgf.cm~2.5kgf.cm

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-37RGM3626

Model:

FT-37RGM3626012-414K

Round Gearbox Size:

37mm

Voltage:

6v/12v

Typical Applications:

Automatic Door Operators, Automatic Energy Saving Bath

Direction:

CW, CCW

Voltage, Speed, And Shaft:

Can Be Customized Based

Current:

≤60/70/30/50

Reduction Ratio:

6,10,19,30,44,56,90,138,169,414,552,810

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

High Torque Slow Speed Gear Motor

Electric Slow Speed Gear Motor

Brushless Electric DC Gear Motor

Product Description

FT-37RGM3626 37mm electric gear motors 6v 12v DC Motor

Product Application: Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

Main Features: 37mm Eccentric out shaft gearbox plus 500 & 520 & 3530 & 3527 and 3650 &3640 brushless motor Small size dc gear motor with low speed and big torque 37mm gear motor provide 1.0Nm torque and more reliable Suitable to small diameter, low noise and big torque application Dc Gear motors can match encoder,11ppr Reduction ratio:6,10,19,30,44,56,90,138,169,414,552,810

Others application
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers
