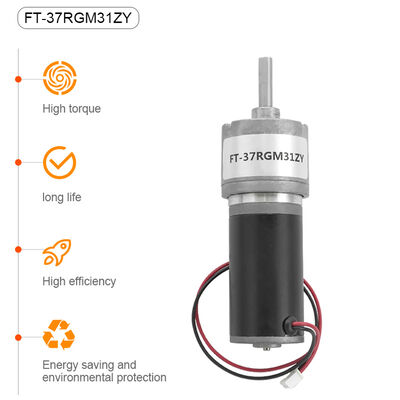

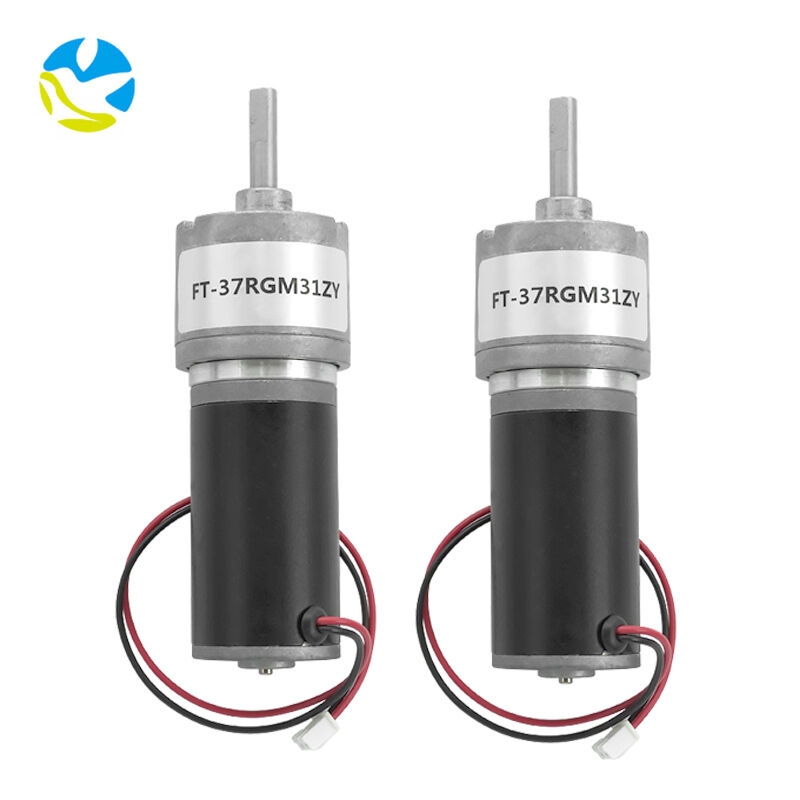

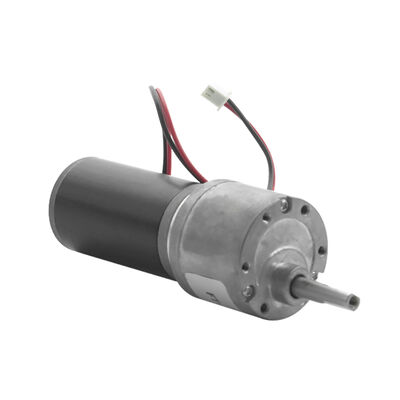

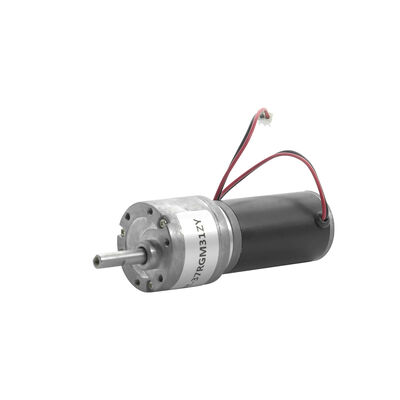

FT-37RGM31ZY DC3-24V Spur Gear Carbon Brushed Motor

Name: FT-37RGM31ZY DC3-24V Spur Gear Carbon Brushed Motor
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-37RGM31ZY
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-37RGM31ZY
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 110mA-550mA

Efficiency:

48%-81%

Commutation:

Brush

Construction:

Permanent Magnet

Torque:

1-55kgf.cm, 160/295/230/170(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-37RGM31ZY

Gear Box Size:

37mm

Voltage:

1-24V

Speed:

1rpm-2500rpm

Rotating Speed:

4500/8000/4500/6000(rpm)

Rated Voltage:

12v/24v

Current:

250/550/100/120(mA)

Output:

9.7/44.4/10.8/18.5(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

24v 12v dc gear motor

24v dc spur gear motor

12v dc spur gear motor

Product Description

FT-37RGM31ZY DC3-24V Spur Gear Carbon Brushed Motor

Geared motor model: FT-37RGM31ZY Gearbox diameter: Ø37mm Voltage: 1-24V Speed: 1rpm-2500rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stages	2	3	4	5	6	7
Reduction ratio (K)	6.8,10	20,30	61,90 100	115,184 270,300	414,552,614 810,900	1243,1657 2430,2700
Gear box length L(mm)	19	22.5	25	27.5	30	32.5
Rated torque (kg·cm)	1	2	5	6	8	10
Instant torque (kg·cm)	3	6	15	18	24	30
Gearbox efficiency (%)	81%	73%	65%	59%	53%	48%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-545	12	4500	250	3800	810	9.7	160	3700	910
FT-545	12	8000	550	6700	3700	44.4	295	11000	1500
FT-545	24	4500	100	3100	450	10.8	230	1400	730
FT-545	24	6000	120	4800	770	18.5	170	3300	770
