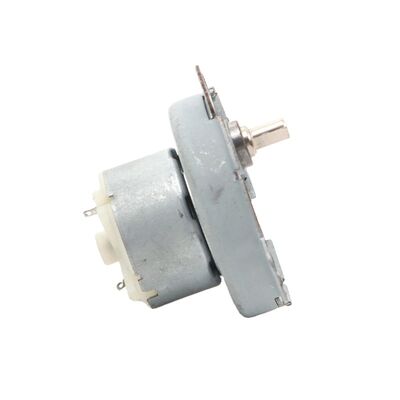

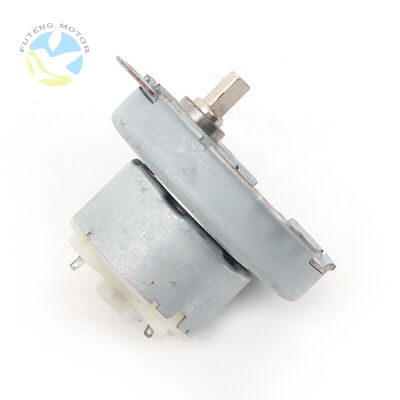

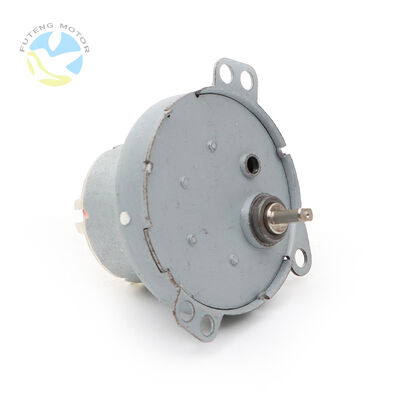

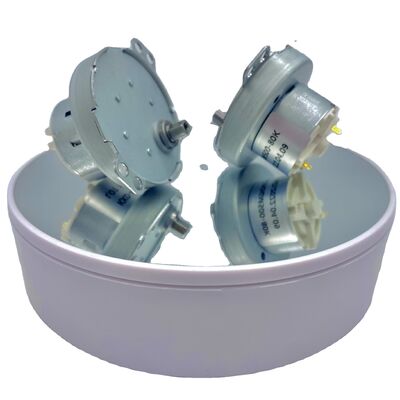

Futeng Factory 49mm Dc Spur Gear Motor Gearbox Long Lifetime Low Speed High Torque Gear Motor 12V/24V/36V

Name: Futeng Factory 49mm Dc Spur Gear Motor Gearbox Long Lifetime Low Speed High Torque Gear Motor 12V/24V/36V
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-49OGM500-1
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-49OGM500-1
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

0.2-0.3A

Efficiency:

49%-65%

Commutation:

Brush

Construction:

Permanent Magnet

Torque:

1-200kgf.cm, 11.6/12.6/12/13.5(g.cm)

Type:

Gear Motor

Usage:

Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-49OGM500-150K

Gear Box Size:

49mm

Voltage:

1-24V

Speed:

2rpm-2000rpm

Rotating Speed:

2700/3100/2700/4000(rpm)

Rated Voltage:

3v/5v/6v/12v

Current:

20/26/30/22(mA)

Output:

0.26/0.27/0.27/0.29(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

49mm dc spur gear motor

high torque gear motor 12v

49mm high torque gear motor

Product Description

FT MOTOR

DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-500	6	2700	20	2180	84	0.26	11.6	350	60
FT-500	5	3100	26	2540	120	0.27	12.6	540	70
FT-500	3	2700	30	2230	160	0.27	12	680	60
FT-500	12	4000	22	3200	125	0.29	13.5	460	75

FAQ

1.Q: Are you trading company or manufacturer? A: We're factory. We specialize in micro dc motor and dc gear motor for more than 10 years. 2.Q: I can't find a suitable motor on your website, can you customize the motor for me? A: Yes, we can customize a suitable motor according to our customer's requirements. 3.Q: Do you have certificates for the motors? A: Yes. we have CE. FCC, ISO, etc. lf you have the other certificates requirement, we can apply it for you. 4. Q: How is your Quality Control? A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D image Tester, Salt Spray Chamber, LifeTester, Temperature Test Machine, and Noise tester etc.
