Futeng Factory Wholesale 37mm 12v 24v Long Pole High Torque Efficiency Motors Dc Spur Gear Motor for Robot

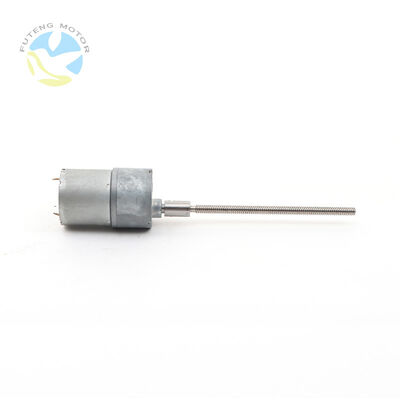

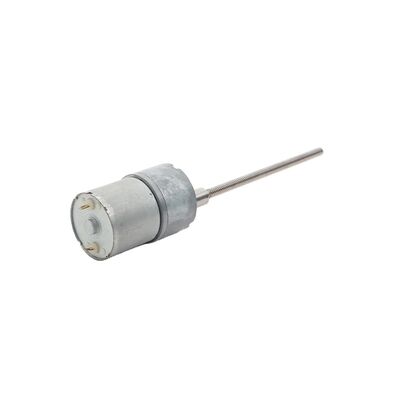

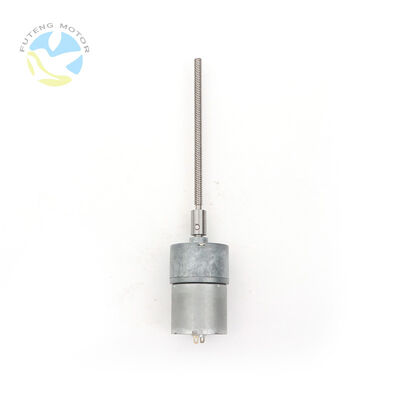

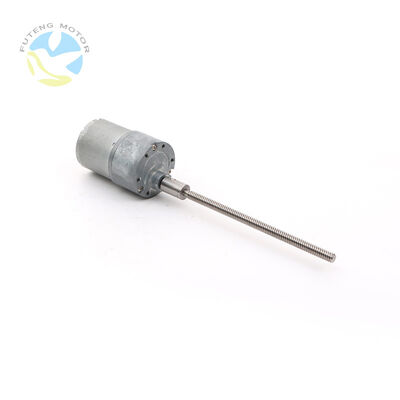

Name: Futeng Factory Wholesale 37mm 12v 24v Long Pole High Torque Efficiency Motors Dc Spur Gear Motor for Robot
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-37RGM3530
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-37RGM3530
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

0.4-0.7A

Efficiency:

48%-81%

Speed(RPM):

2rpm-1000rpm

Commutation:

Brush

Construction:

Permanent Magnet

Rated Power:

1-48w

Rated Voltage:

3-24v, 12/24V

Speed Rpm:

2rpm-1000rpm

Torque:

1-200kgf.cm, 20/110/50/100(g.cm)

Type:

Gear Motor

Usage:

Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-37RGM3530

Gear Box Size:

37mm

Rotating Speed:

3000/6000/4500/6000(rpm)

Current:

60/70/40/40(mA)

Output:

2.04/4.2/3.6/4.8(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

37mm 12v dc gear motor

37mm dc spur gear motor

12v dc spur gear motor

Product Description

FT MOTOR

DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	2	3	4	5	6	7
Reduction ratio (K)	6.8,10	20,30	61,90,100	115,184 270,300	414,552,614 810,900	1243,1657 2430,2700
Gear box length L(mm)	18	21.5	24	26.5	29	31.5
Rated torque (kg·cm)	1	2	5	6	8	10
Instant torque (kg·cm)	3	6	15	18	24	30
Gearbox efficiency (%)	81%	73%	65%	59%	53%	48%

FAQ

Q1: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 10years.

Q2: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitablemotor according to our customer's requirements.

Q3: Do you have certificates for the motors?

A: Yes. we have CE. FCC, ISO, etc. lf you have the other certificates requirement,we can apply it for you.

Q4: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the
whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D image Tester, Salt Spray Chamber,LifeTester, Temperature Test Machine, and Noise tester etc.
