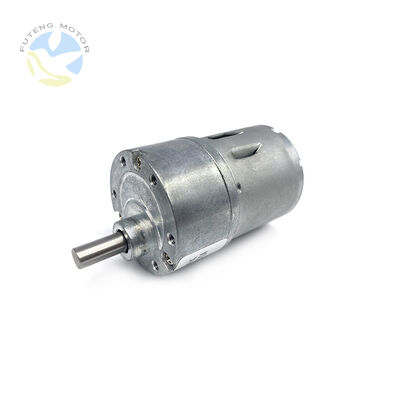

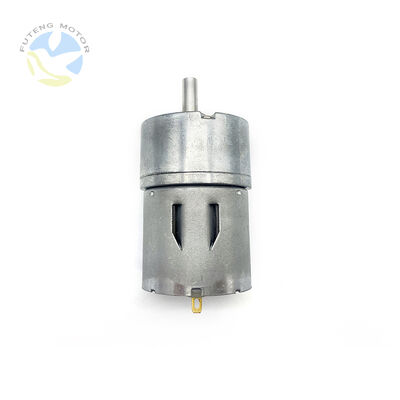

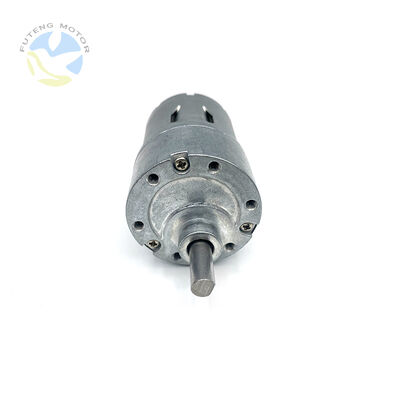

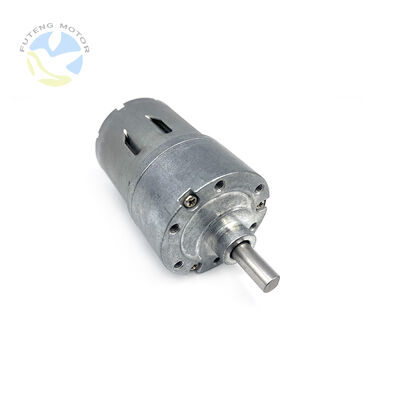

Customized FT-37RGM3530 37mm 12v 24v 1-500rpm High Torque DC Spur Gear Motor for Smart Cat Toilet

Name: Customized FT-37RGM3530 37mm 12v 24v 1-500rpm High Torque DC Spur Gear Motor for Smart Cat Toilet
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-37RGM3530
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-37RGM3530
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 150-5500mA

Efficiency:

48%-81%

Commutation:

Brush

Construction:

Permanent Magnet

Rated Power:

1-48w

Rated Voltage:

3-24V, 12/24V

Speed Rpm:

1rpm-500rpm

Torque:

1-230kgf.cm, 20/110/50/100(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-37RGM3530

Gear Box Size:

37mm

Rotating Speed:

3000/6000/4500/6000(rpm)

Current:

60/70/40/40(mA)

Output:

2.04/4.2/3.6/4.8(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

high torque dc spur gear motor

customized 12v dc gear motor

customized dc spur gear motor

Product Description

Customized FT-37RGM3530 37mm 12v 24v 1-500rpm High Torque DC Spur Gear Motor for Smart Cat Toilet

Geared motor model: FT-37RGM3530 Gearbox diameter: Ø37mm Voltage: 1-24V Speed: 1rpm-1500rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	2	3	4	5	6	7
Reduction ratio (K)	6.8,10	20,30	61,90,100	115,184 270,300	414,552,614 810,900	1243,1657 2430,2700
Gear box length L(mm)	18	21.5	24	26.5	29	31.5
Rated torque (kg·cm)	1	2	5	6	8	10
Instant torque (kg·cm)	3	6	15	18	24	30
Gearbox efficiency (%)	81%	73%	65%	59%	53%	48%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-3530	12	3000	60	2550	170	2.04	20	460	200
FT-3530	12	6000	70	4500	350	4.2	110	2300	440
FT-3530	24	4500	40	3300	150	3.6	50	700	270
FT-3530	24	6000	40	4500	200	4.8	100	1400	400
