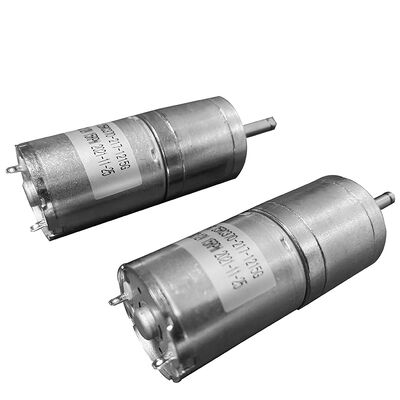

China Manufacturer FT-25RGM370 High Torque Slow Speed Rpm 6v 12v 24v Brushed Geared Motor for 3d Printing Machine

Name: China Manufacturer FT-25RGM370 High Torque Slow Speed Rpm 6v 12v 24v Brushed Geared Motor for 3d Printing Machine
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-25RGM370
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-25RGM370
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 110mA-550mA

Efficiency:

43%-75%

Torque:

1-18kgf.cm, 25.3/30/21/27(g.cm)

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-25RGM370

Gear Box Size:

25mm

Voltage:

1-24V

Speed:

2rpm-1600rpm

Rotating Speed:

12000/12900/10200/5000(rpm)

Rated Voltage:

12v/24v

Current:

26/120/30/40(mA)

Output:

1.25/6.6/2.6/5(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

6v 12v dc gear motor

6v dc spur gear motor

12v dc spur gear motor

Product Description

FT MOTOR

Geared motor model: FT-25RGM370 Gearbox diameter: Ø25mm Voltage: 1-24V Speed: 1rpm-600rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stages	3	4	5	6	7	8
Reduction ratio (K)	9.3 10.3 11.5	20.4,23 25,28	45,50,55 62,68	99,110,122 136,151,167	217,241,268,298 331,368,409	478,531,590,656 729,810,900,1000
Gear box length L(mm)	17.5	19	21	23	25	27
Rated torque (kg·cm)	0.4	0.5	1	1.7	2	2
Instant torque (kg·cm)	1.2	1.5	3	4	6	6
Gearbox efficiency (%)	75%	65%	59%	53%	48%	43%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-370	12	5600	26	4800	170	1.25	25.3	1060	180
FT-370	12	9500	120	7000	550	6.6	30	1600	160
FT-370	24	6000	30	5100	110	2.6	21	420	120
FT-370	24	9000	40	7800	210	5	27	1000	200
