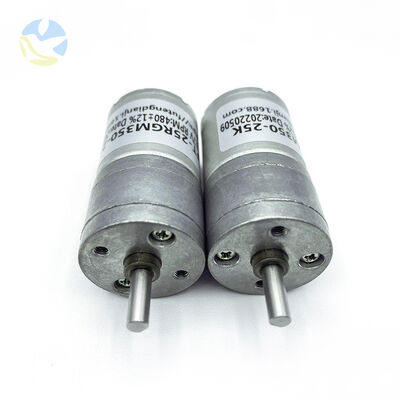

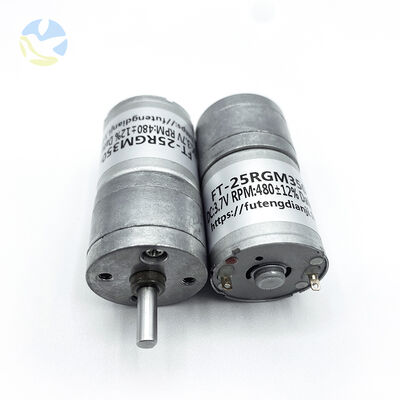

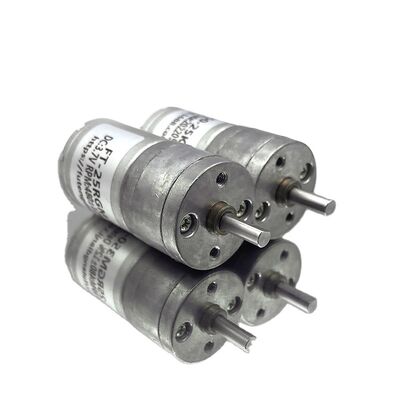

Factory Custom FT-25RGM350 Diameter 25mm Circular Spur Gear Motor 12V 24V Gear Box Motor for Milk Shaker Massager

Name: Factory Custom FT-25RGM350 Diameter 25mm Circular Spur Gear Motor 12V 24V Gear Box Motor for Milk Shaker Massager
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-25RGM350
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-25RGM350
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 150-2800mA

Efficiency:

43%-95%

Torque:

1-25kgf.cm, 3.3/5/10/10(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-25RGM3503.7-25K

Gear Box Size:

25mm

Voltage:

1-24V

Speed:

5rpm-1500rpm

Rotating Speed:

2800/9000/8000/6000(rpm)

Rated Voltage:

2.5/12/24/6V

Current:

17/30/20/33(mA)

Output:

0.073/0.44/0.7/0.5(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

12v dc spur gear motor

24v 12v dc gear motor

24v dc spur gear motor

Product Description

FT MOTOR

Geared motor model: FT-25RGM350

Gearbox diameter: Ø25mm Voltage: 1-24V Speed: 1rpm-500rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	3	4	5	6	7	8
Reduction ratio (K)	9.3 10.3 11.5	20.4,23 25,28	45,50,55 62,68	99,110,122 136,151,167	217,241,268,298 331,368,409	478,531,590,656 729,810,900,1000
Gear box length L(mm)	17.5	19	21	23	25	27
Rated torque (kg·cm)	0.4	0.5	1	1.7	2	2
Instant torque (kg·cm)	1.2	1.5	3	4	6	6
Gearbox efficiency (%)	75%	65%	59%	53%	48%	43%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-350	2.5	2800	17	2200	60	0.073	3.3	220	15
FT-350	12	9000	30	8200	90	0.44	5	500	50
FT-350	24	8000	20	6300	71	0.7	10	190	45
FT-350	6	6000	33	4800	160	0.5	10	550	45
