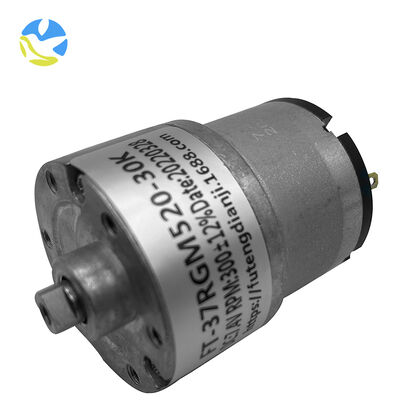

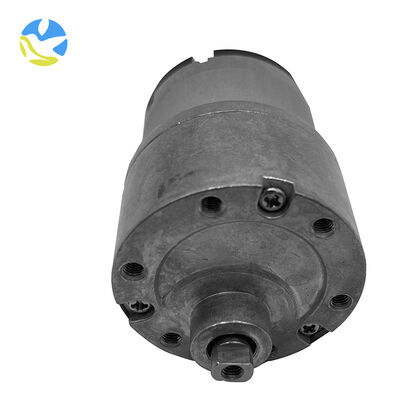

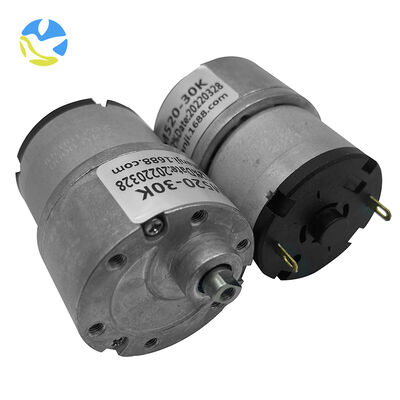

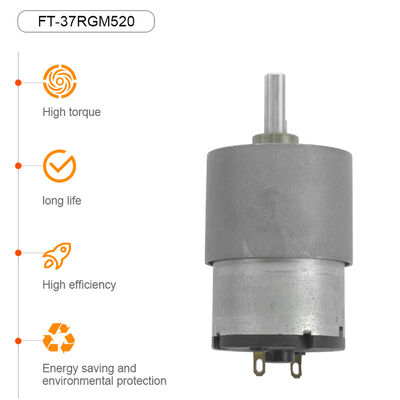

FT-37RGM520 6v 12v 24v 3-800rpm 37mm High Torque Brush Dc Spur Gear Motor

Name: FT-37RGM520 6v 12v 24v 3-800rpm 37mm High Torque Brush Dc Spur Gear Motor
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-37RGM520
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-37RGM520
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 110mA-550mA

Efficiency:

48%-81%

Commutation:

Brush

Construction:

Permanent Magnet

Rated Power:

1-48w

Rated Voltage:

3-24V, 6v/12v/24v

Speed Rpm:

3-800rpm

Torque:

1-150kgf.cm, 15/15/20/15(g.cm)

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-37RGM520

Gear Box Size:

37mm

Rotating Speed:

3000/6000/5500/7500(rpm)

Current:

35/60/30/50(mA)

Output:

0.78/1.8/2.65/2.9(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

6v 12v dc gear motor

6v dc spur gear motor

12v dc spur gear motor

Product Description

FT-37RGM520 6v 12v 24v 3-800rpm 37mm High Torque Brush Dc Spur Gear Motor

Geared motor model: FT-37RGM520 Gearbox diameter: Ø37mm Voltage: 1-24V Speed: 1rpm-1500rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stages	2	3	4	5	6	7
Reduction ratio (K)	6.8,10	20,30	61,90 100	115,184 270,300	414,552,614 810,900	1243,1657 2430,2700
Gear box length L(mm)	18	21.5	24	26.5	29	31.5
Rated torque (kg·cm)	1	2	5	6	8	10
Instant torque (kg·cm)	3	6	15	18	24	30
Gearbox efficiency (%)	81%	73%	65%	59%	53%	48%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-520	6	3000	35	2600	130	0.78	15	500	100
FT-520	12	6000	60	5500	150	1.8	15	1000	135
FT-520	24	5500	30	4900	110	2.65	20	560	150
FT-520	24	7500	50	6700	120	2.9	15	900	230
