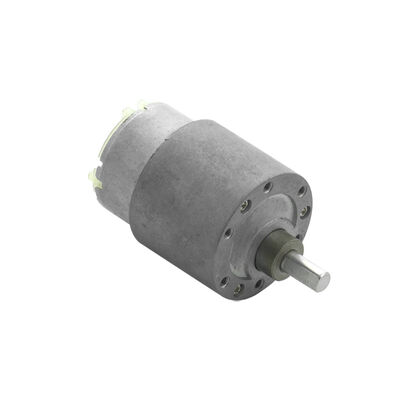

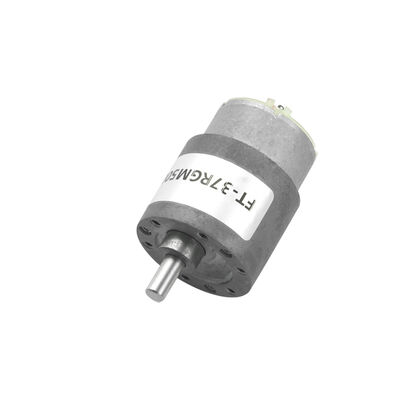

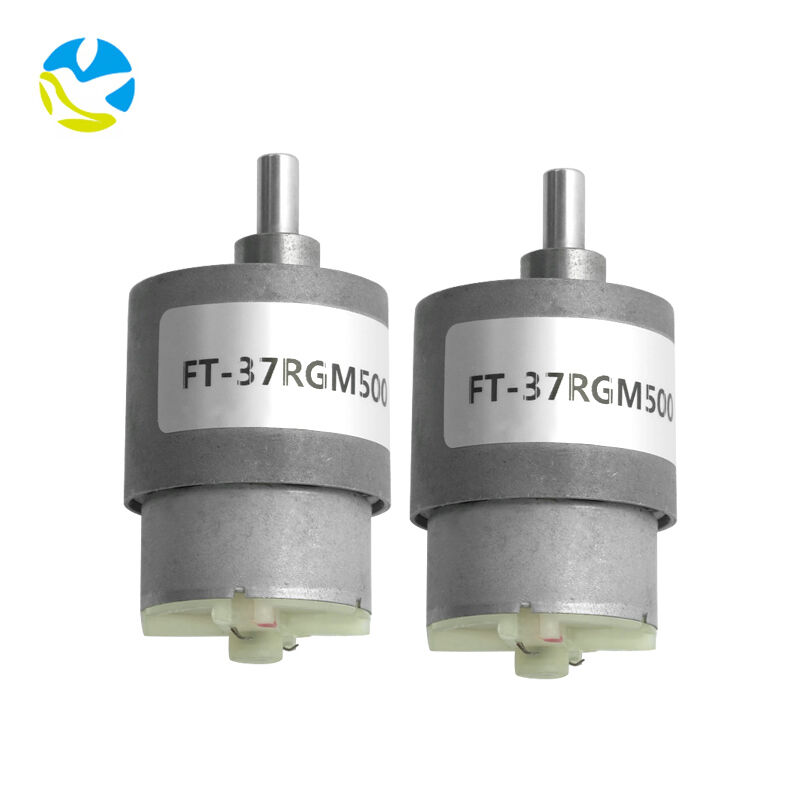

FT-37RGM500 2-500rpm Spur Gear Motor for Household Appliances

Name: FT-37RGM500 2-500rpm Spur Gear Motor for Household Appliances
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-37RGM500
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-37RGM500
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 1150mA

Efficiency:

48%-81%

Rated Power:

1-48w

Rated Voltage:

3-24v, 5/6/6/12V

Speed Rpm:

2-500rpm

Torque:

1-23 Kgf.cm, 12/11/20/25(g.cm)

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-37RGM500

Gear Box Size:

37mm

Rotating Speed:

3100/2700/4000/5900(rpm)

Current:

26/20/30/40(mA)

Output:

0.33/0.26/0.9/3.6(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

ft-37rgm500 12v dc gear motor

ft-37rgm500 dc spur gear motor

24v 12v dc gear motor

Product Description

FT MOTOR

Geared motor model: FT-37RGM500 Gearbox diameter: Ø37mm Voltage: 1-24V Speed: 1rpm-1000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stages	2	3	4	5	6	7
Reduction ratio (K)	6.8,10	20,30	61,90 100	115,184 270,300	414,552,614 810,900	1243,1657 2430,2700
Gear box length L(mm)	18	21.5	24	26.5	29	31.5
Rated torque (kg·cm)	1	2	5	6	8	10
Instant torque (kg·cm)	3	6	15	18	24	30
Gearbox efficiency (%)	81%	73%	65%	59%	53%	48%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-500	5	3100	26	2540	120	0.33	12	540	70
FT-500	6	2700	20	2180	84	0.26	11	350	60
FT-500	6	4000	30	2900	150	0.9	20	550	65
FT-500	12	5900	40	4700	150	3.6	25	1000	80
