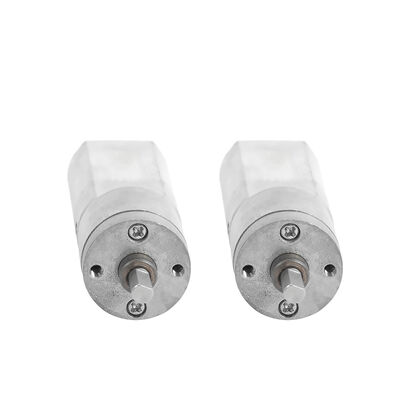

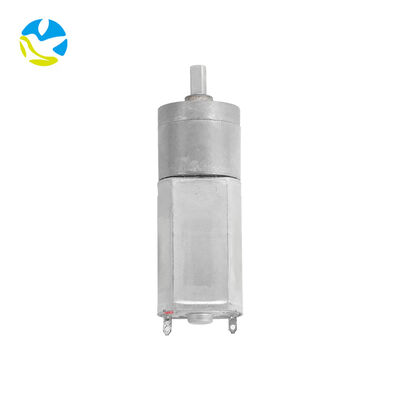

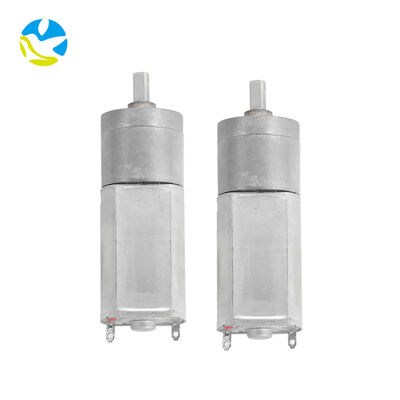

China Diameter 20mm Spur Gearbox Motor High Speed 11000rpm Electric 24V DC Spur Gear Motor for Toys Robot

Name: China Diameter 20mm Spur Gearbox Motor High Speed 11000rpm Electric 24V DC Spur Gear Motor for Toys Robot
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-20RGM180
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-20RGM180
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 1150mA

Efficiency:

43%-65%

Rated Power:

1-48W

Rated Voltage:

3-24V, 12/3/24/5V

Torque:

13 G.cm, 23.6/25.2/25.6/19(g.cm)

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-20RGM180

Gear Box Size:

20mm

Rotating Speed:

12000/12900/10200/5000(rpm)

Current:

70/260/30/75(mA)

Output:

2.41/2.86/2.52/0.8(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

24v dc spur gear motor

electric 12v dc gear motor

electric dc spur gear motor

Product Description

FT MOTOR

Geared motor model: FT-20RGM180 Gearbox diameter: Ø20mm Voltage: 1-24V Speed: 1rpm-1000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	4	5	6	7	8
Reduction ratio (K)	11.8,18,23	35,44,55	67,84,105,132	161,202,252,316	386,484,606,758
Gear box length L(mm)	16.2	17.7	19.2	20.7	22.2
Rated torque (kg·cm)	0.6	0.6	1	1.5	2
Instant torque (kg·cm)	1.8	1.8	3	4.5	6
Gearbox efficiency (%)	65%	59%	53%	48%	43%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-180	24	12000	70	10000	340	2.41	23.6	1700	140
FT-180	3	12900	260	11000	1540	2.86	25.2	9100	174
FT-180	24	10200	30	8600	160	2.52	25.6	830	160
FT-180	5	5000	75	4000	158	0.8	19	790	85
