Wholesale FT-16RGM030 High Torque 3-24V DC Spur Gear Motor

Name: Wholesale FT-16RGM030 High Torque 3-24V DC Spur Gear Motor
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-16RGM030
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-16RGM030
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 190-280mA

Efficiency:

48%-73%

Rated Power:

1-50W

Rated Voltage:

3-24v, 3/5/6/7V

Speed Rpm:

3rpm-500rpm

Torque:

13-2500 G.cm, 5/5.4/5.7(g.cm)

Type:

Geared Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-16RGM030

Gear Box Size:

16mm

Rotating Speed:

6550/10870/7800/11500(rpm)

Current:

75/66/65/56(mA)

Output:

0.35/0.6/0.39/0.67(w)

Name:

DC Spur Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

24v dc spur gear motor

24v 12v dc gear motor

high torque 12v dc gear motor

Product Description

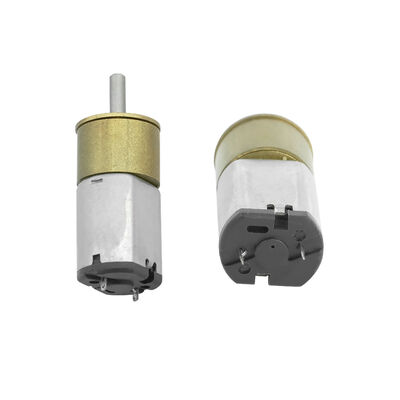

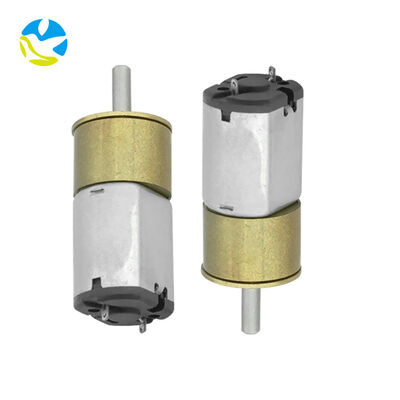

Wholesale FT-16RGM030 High Torque 3-24V DC Spur Gear Motor

Geared motor model: FT-16RGM030 Reducer diameter: Ø16mm Voltage: 1-24V Speed: 5rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data
Gear stages	3	4	5	6	7
Reduction ratio (K)	11.5,14	23,28 32,40	46,56,65,79 91,112		130,159,183 224,257,315	365,448,515,631,725,889
Gear box length L(mm)	11	12.5	14		15.5	17
Rated torque (kg·cm)	0.1	0.2	0.3		1	1.5
Instant torque (kg·cm)	0.8	1	1.5		2	3
Gearbox efficiency (%)	73%	65%	59%		53%	48%

Motor Model		No Load			Load
		Rated voltage	Speed	Current	Speed	Current	Output	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)
FT-030	3	8500	75	6550	280	0.35	5
FT-030	5	13800	66	10870	250	0.6	5.4
FT-030	6	10400	65	7800	190	0.39	5
FT-030	7	14800	56	11500	200	0.67	5.7
