FT-17PGM180 High Torque Gear Motor , DC Planetary Gear Motor For Robot

Name: FT-17PGM180 High Torque Gear Motor , DC Planetary Gear Motor For Robot
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-17PGM180
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-17PGM180
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 1150mA

Efficiency:

90%

Commutation:

Brush

Construction:

Permanent Magnet

Rated Power:

1-48w

Rated Voltage:

3-24v, 12/3/24/5V

Speed Rpm:

1rpm-2000rpm

Torque:

1-30kgf.cm, 2.1/2.8/3/4

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Gear Motor Model:

FT-17PGM180

DC Gear Motors Are Widely Used:

Robots, Electronic Locks, Public Bicycle Locks, Relays

Rotating Speed:

12000/12900/10200/5000(rpm)

Current:

20/35/45/96(mA)

Output:

0.2/0.25/0.35/0.52(w)

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

FT-17PGM180 High Torque Gear Motor

High Torque DC Planetary Gear Motor

Robot DC Planetary Gear Motor

Product Description

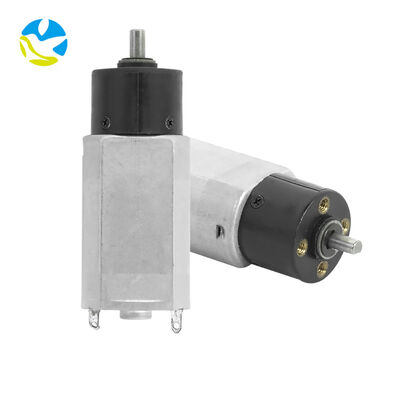

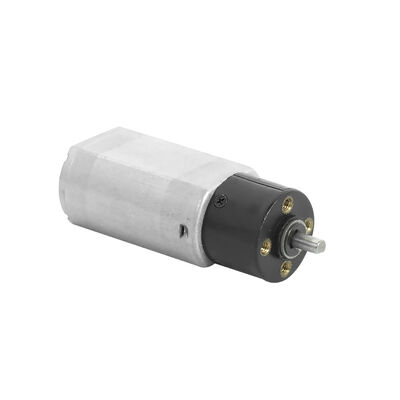

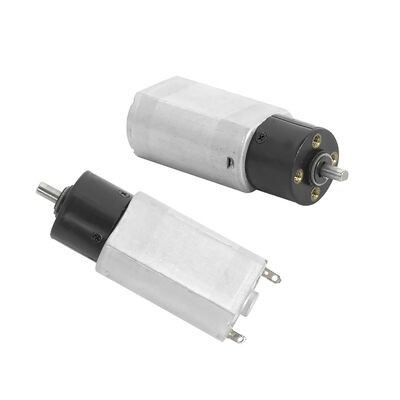

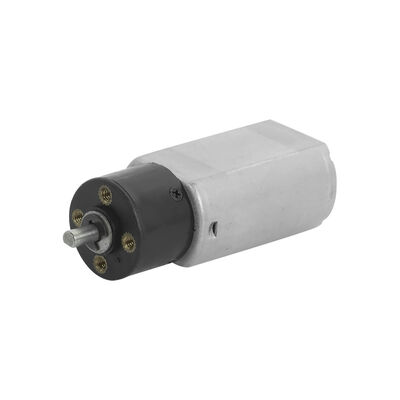

FT-17PGM180 High Torque Gear Motor DC Planetary Gear Motor For Robot

FT MOTOR

Geared motor model: FT-17PGM180

Reducer diameter: Ø17mm

Voltage: 1-24V

Speed: 1rpm-2000rpm

DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	1
Reduction ratio (K)	6
Gear box length L(mm)	12
Rated torque (kg·cm)	0.2
Instant torque (kg·cm)	0.6
Gearbox efficiency (%)	90%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-130	12	12000	70	10000	340	2.41	23.6	1700	140
FT-130	3	12900	260	11000	1540	2.86	25.2	9100	174
FT-130	24	10200	30	8600	160	2.52	25.6	830	160
FT-130	5	5000	75	4000	158	0.8	19	790	85
