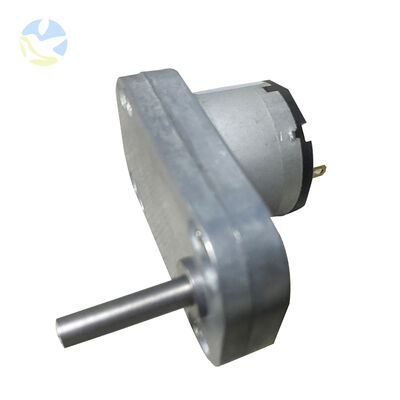

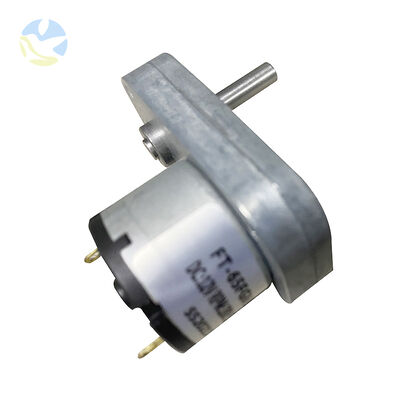

Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox

Name: Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-65FGM520
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-65FGM520
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 430mA-2500mA

Efficiency:

59%-73%

Commutation:

Brush

Construction:

Permanent Magnet

Torque:

1-80kgf.cm, 15/15/20/15(g.cm)

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-65FGM520

Gear Box Size:

65*38mm

Voltage:

3-24V

Speed:

5rpm-5000rpm

Rotating Speed:

3000/6000/5500/7500(rpm)

Current:

35/60/30/50(mA)

Output:

0.78/1.8/2.65/2.9(w)

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

Custom Low Rpm DC Gear Motor

12V Low Rpm DC Gear Motor

Low Rpm DC Gear Motor High Torque

Product Description

Custom 3-12V High Torque Low Rpm DC Gear Motor With Flat Gearbox 1-35kg.Cm 5-5000rpm Gear Motor

FT MOTOR

FT MOTOR Geared motor model: FT-65FGM520 Gearbox diameter: Ø65*38mm Voltage: 3-24V Speed: 5rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	3	4	5
Reduction ratio (K)	41.8,67.5	135,225	450
Gear box length L(mm)	12	12	12
Rated torque (kg·cm)	2	6	8
Instant torque (kg·cm)	6	18	24
Gearbox efficiency (%)	73%	65%	59%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-520	6	3000	35	2600	130	0.78	15	500	100
FT-520	12	6000	60	5500	150	1.8	15	1000	135
FT-520	24	5500	30	4900	110	2.65	20	560	150
FT-520	24	7500	50	6700	120	2.9	15	900	230
