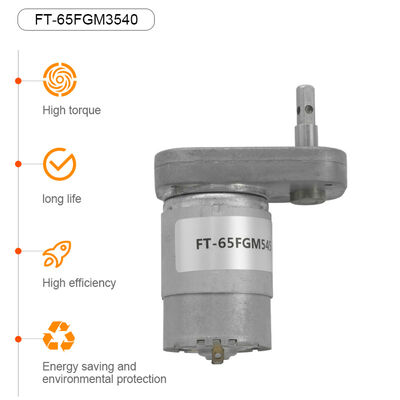

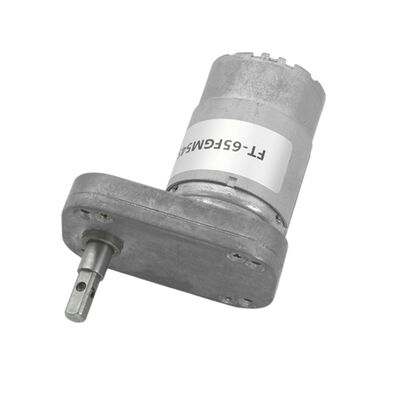

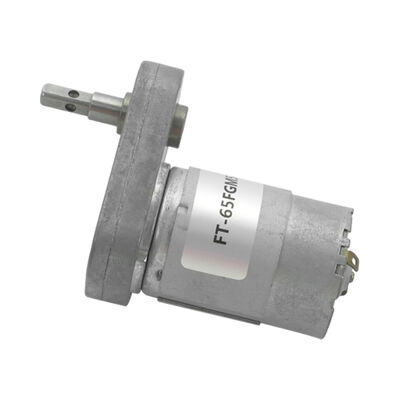

Brushed DC Flat Gear Motor Low Noise 12V DC Gear Motor FT-65FGM545

Name: Brushed DC Flat Gear Motor Low Noise 12V DC Gear Motor FT-65FGM545
Brand: Dongguan Futeng Motor Co., Ltd
SKU: FT-65FGM545
Availability: InStock

Brand Name:	FUTENG
Model Number:	FT-65FGM545
MOQ:	1000 Pieces
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000 0000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/REACH/ISO14001/ISO9001/ISO45001/IATF16949

Continuous Current(A):

About 430mA-2500mA

Efficiency:

59%-73%

Commutation:

Brush

Construction:

Permanent Magnet

Torque:

1-7 0kgf.cm, 100/50/20/110(g.cm)

Type:

Gear Motor

Usage:

Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Geared Motor Model:

FT-65FGM545

Gear Box Size:

65*38mm

Voltage:

3-24V

Speed:

5rpm-2000rpm

Rotating Speed:

4500/6000/6000/7000(rpm)

Current:

50/70/55/60(mA)

Output:

3.6/4.2/6 /1.76(w)

Name:

Flat Gear Motor

Packaging Details:

Standard Export Carton & Customzied

Supply Ability:

8000 0000

Highlight:

Brushed DC Flat Gear Motor

Flat Gear Motor Low Noise

12V DC Gear Motor FT-65FGM545

Product Description

China Manufacturer Direct Selling 12V DC Gear Motor Low Noise Brushed DC Flat Gear Motor

FT MOTOR

FT MOTOR Geared motor model: FT-65FGM545 Gearbox diameter: Ø65*38mm Voltage: 3-24V Speed: 5rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	3	4	5
Reduction ratio (K)	41.8,67.5	135,225	450
Gear box length L(mm)	12	12	12
Rated torque (kg·cm)	2	6	8
Instant torque (kg·cm)	6	18	24
Gearbox efficiency (%)	73%	65%	59%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-545	12	4500	50	3600	420	3.6	100	1800	430
FT-545	12	6000	70	5100	350	4.2	50	2500	500
FT-545	24	6000	55	5500	250	6	20	1280	480
FT-545	24	7000	60	5100	490	11.76	110	2300	500
