| Brand Name: | FUTENG |
| Model Number: | FT-5740 BLDC |
| MOQ: | 1000 Pieces |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 0000 |

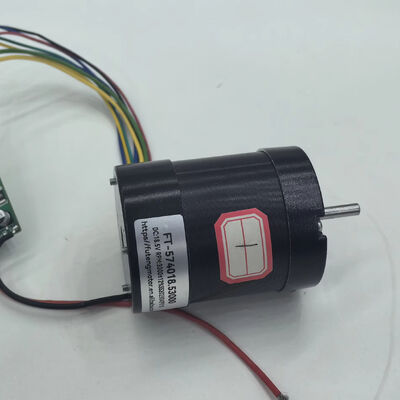

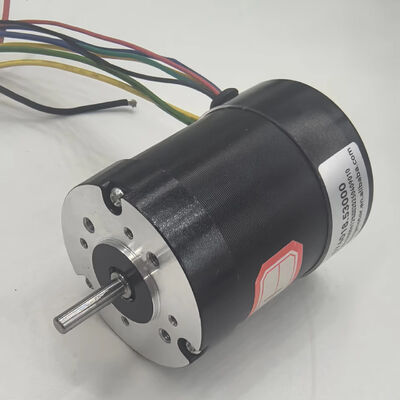

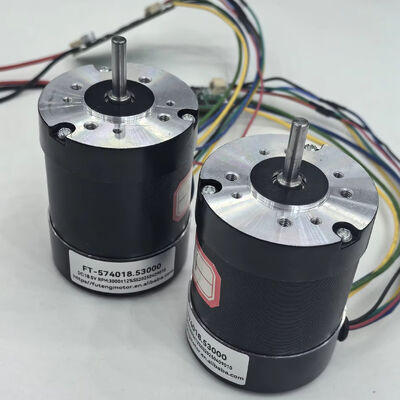

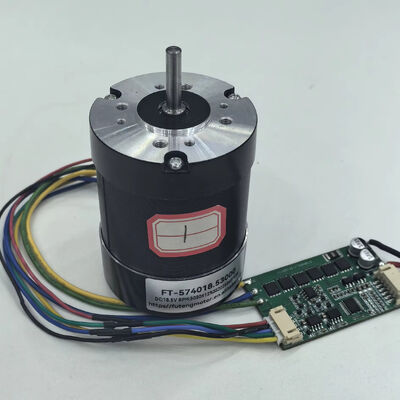

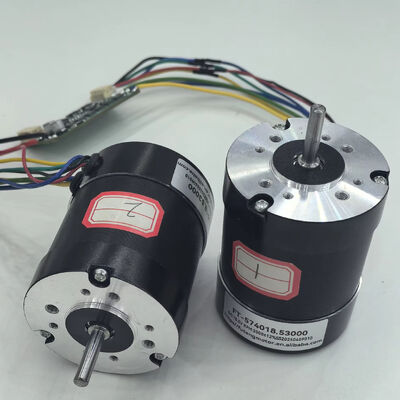

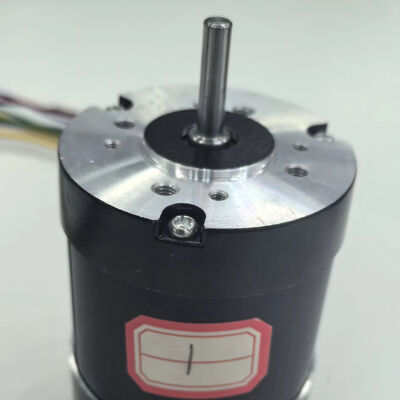

Customized FT-5740 BLDC 5740 Brushless DC Motor for Robotic Lawn Mower Cutting Disc
|
item |
value |
|
Warranty |
1year |
|
Place of Origin |
China |
|
|
Dongguan |
|
Brand Name |
Futeng Motor |
|
Model Number |
FT-5740BL |
|
Usage |
BOAT, Car, Electric Bicycle, FAN, Cosmetic instrument, SMART HOME |
|
Type |
Brushless Motor |
|
Torque |
0.1-0.44N.m |
|
Construction |
Permanent Magnet |
|
Commutation |
Brushless |
|
Protect Feature |
Explosion-proof |
|
Speed(RPM) |
3000 -4000rpm |
|
Continuous Current(A) |
5-6.8A |
|
Efficiency |
IE 4 |
|
Product name |
5740 Brushless Dc motor |
|
Rated speed |
3000-4000rpm |
|
Rated torque |
0.1-0.44N.m |
|
Number of poles |
4 |
|
motor length |
107mm |
|
Voltage |
24-48VDC |
|
Insulation Class |
B |
|
Shaft diameter |
8mm Customzied |
|
Rated Current |
5-6.8A |
|
Certification |
CE, ROHS |
|
Product Series |
Poles No. |
Rated Voltage |
Rated Speed |
Rated Torque |
Rated Power |
Motor Length |
|
42mm BLDC Motor |
8 |
24v |
4000rpm |
0.0625~0.25N.m |
26~105w |
41~100mm |
|
57mm BLDC Motor |
4 |
36v |
4000rpm |
0.055~0.44N.m |
23~184w |
37~107mm |
|
60mm BLDC Motor |
8 |
48v |
3000rpm |
0.3~1.2N.m |
94~377w |
78~120mm |
|
80mm BLDC Motor |
4 |
48v |
3000rpm |
0.35~1.4N.m |
110~440w |
78~138mm |
|
86mm BLDC Motor |
8 |
48v |
3000rpm |
0.35~2.1N.m |
110~660w |
71~138.5mm |
|
110mm BLDC Motor |
8 |
310v |
3000rpm |
1.65~6.6N.m |
518~2073w |
83~173mm |
|
130mm BLDC Motor |
10 |
310v |
3000rpm |
2.39~11.94N.m |
750~2500w |
115~190mm |
Can be customized & Standard Export Carton
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
