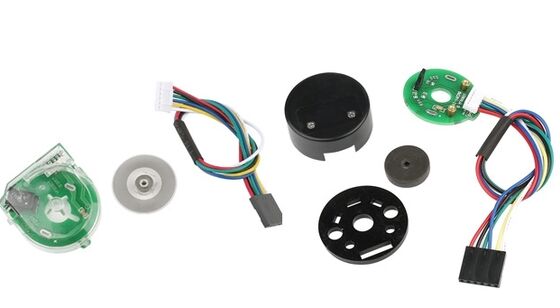

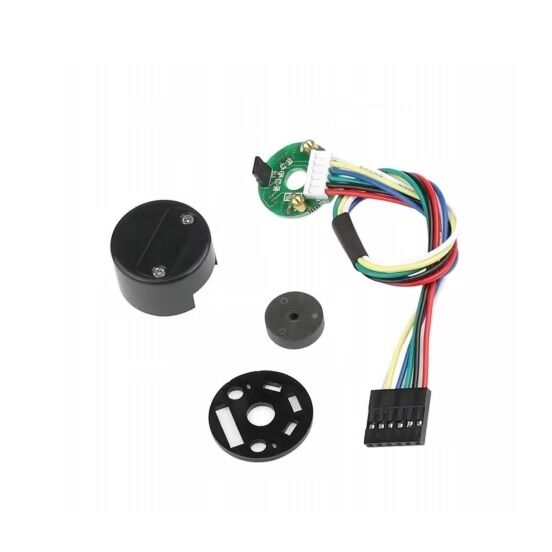

Customized Incremental Hall Encoder Series 12 CPR 13CPR

 Customized Incremental Hall Encoder Series 12 CPR 13CPR

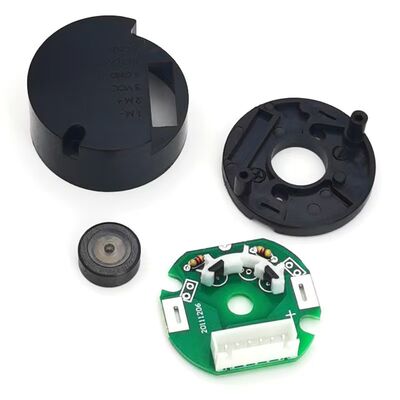

 Suitable for most of the micro motors on the market, the speed measuring encoder is equipped with a dust-proof protective cover, and the quantity can customized according to needs.
Note that the motor must have a rear output shaft, and all encoders are purchased for rear-mounted fixed installation, and the output shaft diameter can customized according to needs.

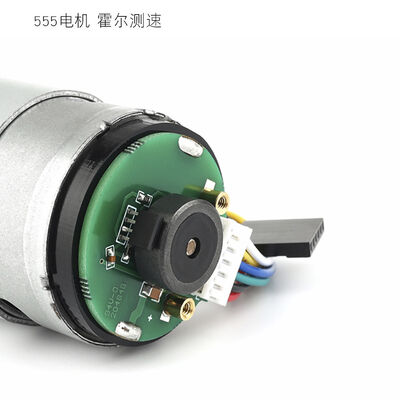

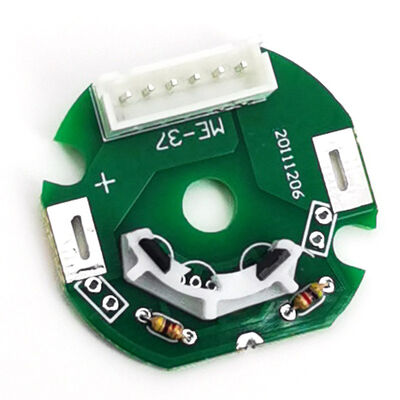

Hall speed measurement accuracy: 12, 13, 16 CPR (the number of pulses output by the motor in one), other precisions need to be customized.

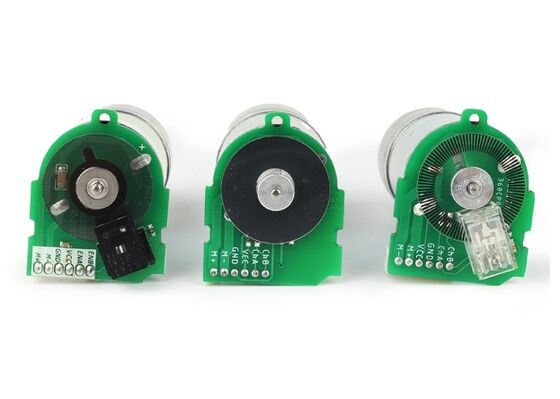

Photoelectric speed measurement accuracy: 360, 448, CPR (high precision), other prec need to be customized.
The price shown is a standard price for a set, please consult the online customer service for a large quantity, samples can be sent, and we will in the installation.

 There are 12CPR and 13CPR speed accuracy motors available.
Hall speed measurement supports custom 4CPR-1CPR, for details please consult customer service.
Here is a brief explanation with 12CPR as an example, this parameter detects the rear shaft part of the motor i.e. the motor's rear shaft rotates one circle
Output 12 pulses (separate A phase or B phase), if the motor's reduction is 1:34, then the motor output shaft rotates
The pulse number for one circle is 12*34=408 pulses, and the number per circle after 4 times frequency in the software is 1632.

Q: How to order?

A: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production →

Cargo ready → Balance/delivery → Further cooperation

Q: How about Sample order?

A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund

when you place formal order.

Q: Which shipping way is available?

A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you

need ship by the other shipping way.

Q: How long is the deliver[Producing] and shipping?

A: Deliver time depends on the quantity you order. usually it takes 7-15 working days.

Q: My package has missing products. What can I do?

A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.

Q: How to confirm the payment?

A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other

payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
